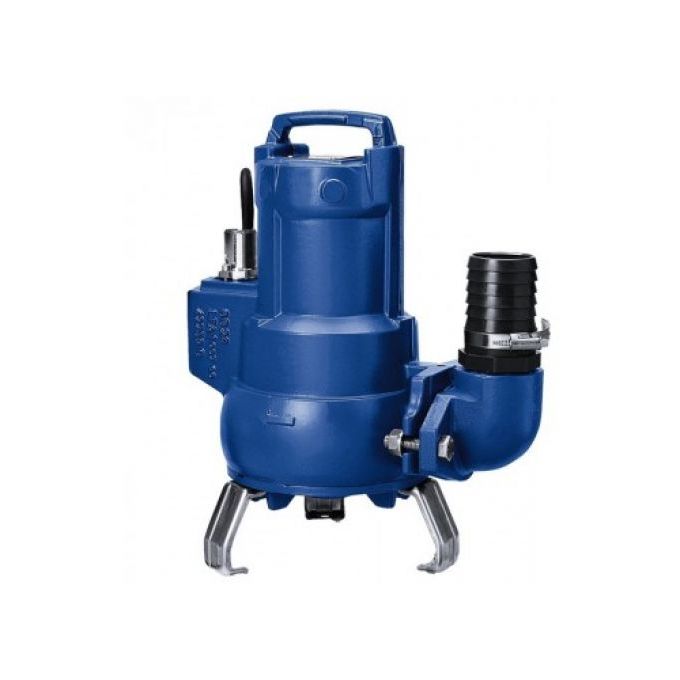

KSB AMA Porter 601 ND Submersible Drainage Pump - 3 Phase - Without Float Switch

Part Number:
KSB-39017109
This item is now obsolete. Please view our alternatives below.
£2,089.18 RRP £1,525.10 £1,270.92

Free Delivery Over £50

KSB Ama-Porter 601 ND. Vertical, fully floodable submersible waste water pump. Pump Only, no installation kit.
1 year warranty With This Product

A vertical single-stage fully floodable submersible waste water pump in close-coupled design (grey cast iron variant), non-explosion-proof.

Suitable for handling waste water, especially waste water containing long fibres and solid substances, fluids containing gas/air, removing waste water from flooded rooms or surfaces.

High operating reliability even under tough operating conditions, due to generously sized motor, thermal overload protection by temperature switch integrated in the winding, and encapsulated, watertight motor design.

Safe connection Plug-type connector, polarized to prevent incorrect insertion.

Service-friendly right down to details: wetted bolts made of stainless steel. Easy to dismantle, even after years of operation.

Easy installation and removal Automatic, bolt-free connection for stationary installation; leakage prevented by flexible sealing.

Trouble-free operation Clogging by coarse particles is prevented by

■ large passage (free-flow impeller “F”)

■ by cutter with high mechanical resistance for waste water (cutter “S”)

Long service life thanks to shaft made of corrosion-resistant stainless steel and bi-rotational mechanical seal with special SiC/Al2 O3 contact faces.

Installation Kit Not Included

More Information
Price £1,270.92
Manufacturer KSB
Warranty 1 year warranty
Electrical supply 400V
AC Power Three Phase
Flow Rate 283 Ltr/min
Max Head 21m
Pump Operation Manual (without float switch)
Water type Dirty Water
Pump Type Submersible
Switch None
Duty Type Domestic
Submersible vs Surface Mounted Submersible
Next Day Delivery No
Manufacturers Part Number 39017109
