GR-97775329
Grundfos Sololift 2 WC-1 Domestic Wastewater Packaged Pumping Unit - Macerator - 230vThe Sololift2 WC-1 is suitable for pumping wastewater from a toilet and a wash hand basin where there is no natural fall under gravity to the building's sewerage or drainage system.
-
GR-97775330

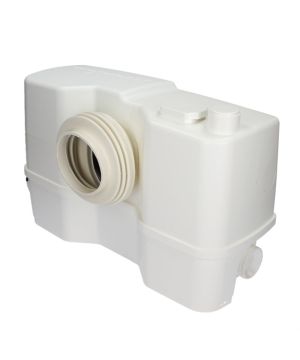

Grundfos Sololift 2 WC-3 Domestic Wastewater Macerator Packaged Pumping Unit - 230vThe Sololift2 WC-3 is suitable for pumping wastewater from a toilet, a wash hand basin and a shower where there is no natural fall under gravity to the building's sewerage or drainage system.
-
GR-97775331

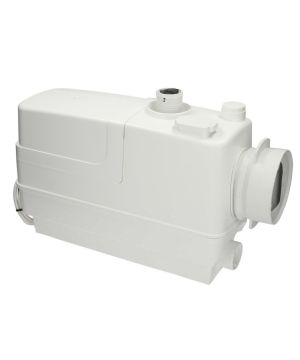

Grundfos Sololift 2 CWC-3 Domestic Wastewater Mascerator Packaged Pumping Unit - Wall Hung - 230vThe Sololift2 CWC-3 is suitable for pumping wastewater from a wall hung toilet, a wash hand basin, a shower and a bidet where there is no natural fall under gravity to the building's sewerage or drainage system.
-
GR-97775332

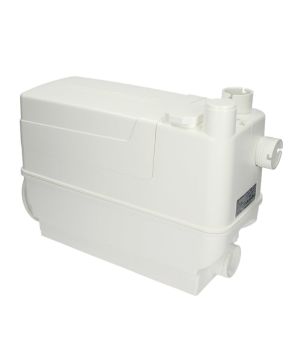

Grundfos Sololift 2 C-3 Domestic Dishwasher/Washing Machine Wastewater Packaged Pumping Unit - 230vThe C-3 is suitable for pumping grey wastewater upto 90°C from an industrial washing machine, dishwasher, kitchen sink, bath, shower, bidet and wash basin.
-
GR-97775333

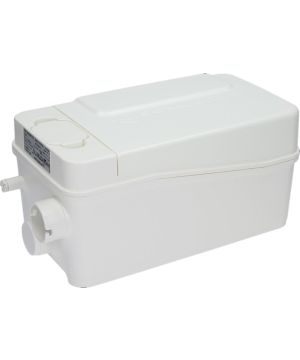

Grundfos Sololift 2 D-2 Domestic Shower/Sink Wastewater Packaged Pumping Unit - 230vThe Sololift2 D-2 is suitable for pumping wastewater from a wash hand basin and a shower where there is no natural fall under gravity to the building's sewerage or drainage system.
-
GR-96004598

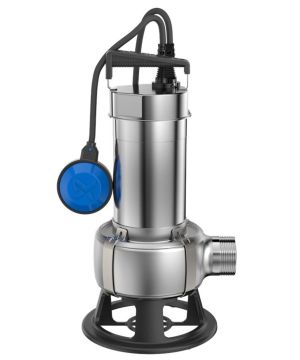

Grundfos AP 50B.50.11.A1V Wastewater Submersible Pump - With Level Switch - 230vGrundfos AP 50B.50.11.A1V Wastewater Submersible Pump, 230v c/w 5 metres of mains cable, with level switch. The AP50B is a submersible pump designed for wastewater including domestic effluent.
-
JB-53081-2061-230

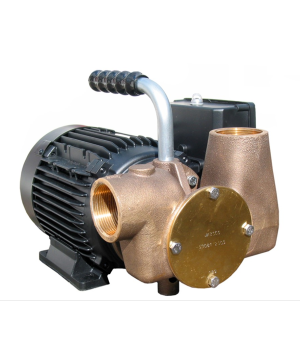

Jabsco Utility 80' 1½" Self-Priming Pump 230v for On board & Dockside Holding Tank Pump OutJabsco Utility 80' 1½" Self-Priming Pump 230v for On board & Dockside Holding Tank Pump Out
-
ST-46586
Stuart Turner Diver 45 Submersible Drainage/Well Pump - with Float Switch - 240VSupplier code: 46586. The Stuart Turner Diver 45 submersible pump offerS a solution to lifting clean fresh water only for high head (pressure) requirements. Incorporating a floating switch to protect against running dry, these pumps are ideal for applications where pressure is needed, such as sprinklers or pumping up to storage tanks.
-
011-768A

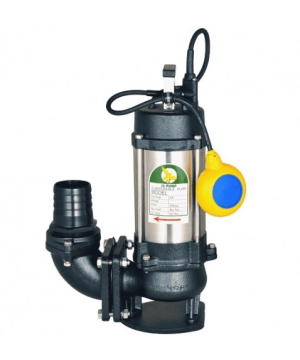

JS 1500 SV Submersible Waste Water/Sewage Vortex Pump - 230vComplete with float switch. Thermal overload protection guards against high amperage and high temperature.
-
011-700A

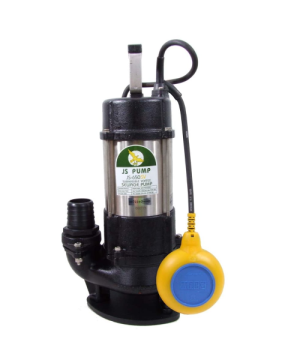

JS 650 SV Auto Submersible Sewage Vortex Pump - 2 inch - 230vThe JS-SV series are a range of single phase submersible sewage pumps which feature a vortex impeller, allowing soft solids to pass through the pump body to waste.
-
1771031921A
Ebara RIGHT/A 75 M A 10MT SPINA UK Sewage Pump - 230v - Single Phase - 240 Ltr/minSubmersible electric pump for waste water in AISI 304 stainless steel.
Pump body, impeller, motor cover, seal holder disc and motor case in AISI 304. Shaft in AISI 303
(part in contact with the liquid). Present the double mechanical seal with oil chamber: the upper one in Carbon/Ceramic/NBR (motor side) and the lower one in SiC/SiC/NBR (pump side). -
1771051921A
Ebara RIGHT/A 100 M A 10MT SPINA UK Sewage Pump - 230v - Single Phase - 300 Ltr/minSubmersible electric pump for waste water in AISI 304 stainless steel.
Pump body, impeller, motor cover, seal holder disc and motor case in AISI 304. Shaft in AISI 303
(part in contact with the liquid). Present the double mechanical seal with oil chamber: the upper one in Carbon/Ceramic/NBR (motor side) and the lower one in SiC/SiC/NBR (pump side). -
1599071621A
Ebara DW VOX/A M 150 SPINA UK Submersible Sewage Pump - 230v - Single Phase - ManualSubmersible electric pumps in stainless steel AISI 304 for sewage. They have a pump body, impeller, motor cover, seal holder disc and motor case in AISI 304, while the shaft is in AISI 303. Double mechanical seal with interposed oil chamber: the upper one in carbon/ceramic/NBR (motor side), the lower one in SiC/SiC/NBR (pump side).G20 cast iron spacer (only for DW – DW VOX 300). -
1599071721A
Ebara DW VOX/A M 150 A SPINA UK Submersible Sewage Pump - 230v - Single Phase - With FloatswitchSubmersible electric pumps in stainless steel AISI 304 for sewage. They have a pump body, impeller, motor cover, seal holder disc and motor case in AISI 304, while the shaft is in AISI 303. Double mechanical seal with interposed oil chamber: the upper one in carbon/ceramic/NBR (motor side), the lower one in SiC/SiC/NBR (pump side).G20 cast iron spacer (only for DW – DW VOX 300). -
1771031621A
Ebara RIGHT/A 75 M 10MT SPINA UK Submersible Sewage Pump - 230v - Single Phase - 240 Ltr/minSubmersible pump entirely in AISI 304 stainless steel and open vortex impeller, which can be used in fixed and mobile installations.
The RIGHT electric pump is also available with a float switch that allows for wide use.
For further technical information see the Databook• Handling of soiled liquids containing solid and/or filamentary substances in suspension
• Emptying of seepage water
• Handling of dirty wastewater (sanitary)
• Emptying of cesspits and discharge to sewers -
1771051621A
Ebara RIGHT/A 100 M 10MT SPINA UK Submersible Sewage Pump - 230v - Single Phase - 300 Ltr/minSubmersible pump entirely in AISI 304 stainless steel and open vortex impeller, which can be used in fixed and mobile installations.
The RIGHT electric pump is also available with a float switch that allows for wide use.
For further technical information see the Databook
Not sure what you're looking for?
Rated excellent on
We're the largest independent pump distributor in the UK
Call us to get expert advice:
Sewage Handling
Sewage handling equipment moves foul water and sewage safely from properties and sites that cannot drain by gravity, covering pumps, chambers, and complete pumping stations. Reliable sewage handling protects buildings, complies with regulations, and prevents environmental harm.
What is Sewage Handling?
Sewage handling encompasses submersible sewage pumps, macerators, packaged pumping stations, and accessories designed to transport wastewater containing solids to the sewer network or treatment plant. Solutions scale from single-property units to adoptable stations serving developments.
How it works
- Foul water drains from the property into a collection chamber or tank.
- Level controls detect the rising contents and start the sewage pump.
- Vortex, cutter, or grinder hydraulics pass or reduce the solids present.
- The contents are discharged under pressure to the gravity sewer connection.
Where is Sewage Handling Equipment Used?
Basement Bathrooms
Lifting foul water from below sewer level.
Off-Mains Properties
Pumping to distant sewer connections or treatment plants.
Housing Developments
Site-wide pumping stations for new builds.
Commercial Premises
Restaurants, hotels, and facilities with pumped drainage.
How to determine which Sewage Handling solution is the one you need?
Solids Handling
Free passage size or cutter/grinder action to suit the waste.
Flow & Head
Duty to reach the sewer at the required rate, including friction losses.
Chamber Capacity
Storage margin for peak inflow and pump failure scenarios.
Duty & Standby
Twin pump arrangements are essential for critical installations.
Comparing Types of Sewage Handling Equipment
Vortex Sewage Pumps
Free-flow impellers passing large solids reliably.
Cutter & Grinder Pumps
Reducing solids for small-bore rising mains.
Packaged Pumping Stations
Complete chambers with pumps and controls.
Macerator Units
Compact solutions for single WCs and bathrooms.
We Stock Leading Brands
Here at Pump Sales Direct, we supply high-quality sewage handling pumps and equipment from trusted manufacturers, with expert product support, fast delivery, and manufacturer warranty where applicable.
Related Guides
Duty vs Standby Pumps
Read More >
Submersible Pumps and Float Switches 101
Read More >
Heavy Summer Rain? How to Remove Floodwater
Read More >
Domestic vs. Commercial Pumps
Read More >
FAQs
What is the difference between vortex and grinder pumps?
Vortex pumps pass solids whole through a free-flow impeller, while grinder pumps cut solids into a slurry suitable for small-diameter rising mains.
Do I need a twin pump station?
For foul sewage serving occupied buildings, twin duty/standby pumps are strongly recommended and often required.
What free passage do I need for raw sewage?
Raw sewage pumps traditionally offer large free passage; the appropriate size depends on the application and pipework.
How often should sewage pumps be serviced?
Annual servicing is typical for domestic stations, with more frequent attention for commercial and heavily used installations.
What should never go into a sewage pump system?
Wipes, sanitary products, fats, and rags cause the majority of blockages, even in pumps designed for sewage.
Troubleshooting your Sewage Handling System
Pump blocked: Isolate, lift, and clear the pump; investigate what entered the system.
High level alarm: Check pump operation, non-return valves, and inflow rates.
Frequent tripping: Possible partial blockage, worn impeller, or electrical fault requiring inspection.
