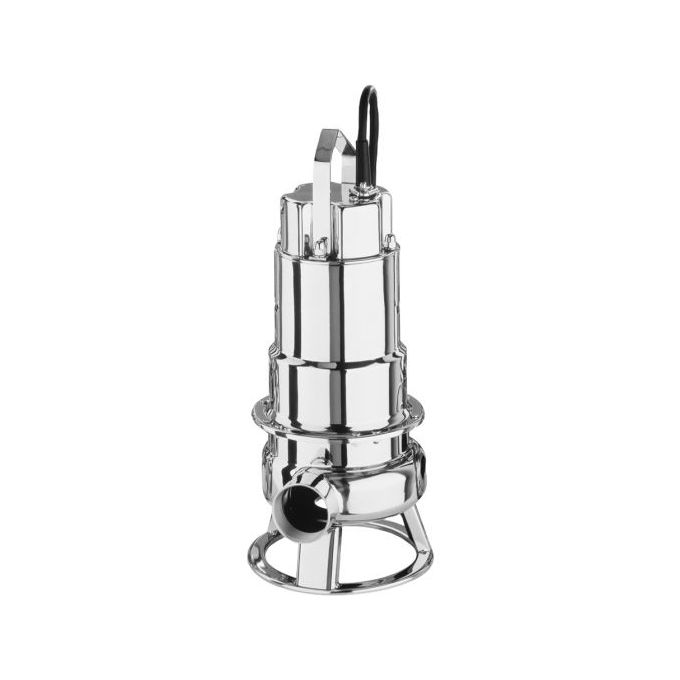

Ebara DW VOX/A M 150 SPINA UK Submersible Sewage Pump - 230v - Single Phase - Manual

Part Number:
1599071621A
This item is now obsolete. Please view our alternatives below.
£1,686.09 RRP £1,146.54 £955.45

Free Delivery Over £50

Submersible electric pumps in stainless steel AISI 304 for sewage. They have a pump body, impeller, motor cover, seal holder disc and motor case in AISI 304, while the shaft is in AISI 303. Double mechanical seal with interposed oil chamber: the upper one in carbon/ceramic/NBR... Read More
1 year warranty With This Product
The Ebara DW VOC/A M 150 M submersible electric pumps in stainless steel AISI 304 for sewage. They have a pump body, impeller, motor cover, seal holder disc and motor case in AISI 304, while the shaft is in AISI 303. Double mechanical seal with interposed oil chamber: the upper one in carbon/ceramic/NBR (motor side), the lower one in SiC/SiC/NBR (pump side).
G20 cast iron spacer (only for DW – DW VOX 300).

TECHNICAL DATA

• Total head from 2.2 to 20 m for DW
and from 1.6 a 15.7 m for DW VOX
• Capacity from 6 a 54 m3/h for DW
and from 6 to 48 m3/h for DW VOX
• Maximum immersion 7 m
• Maximum liquid temperature 40°C
• Maximum solid size passage 50 mm
More Information
Price £955.45
Manufacturer Ebara
Warranty 1 year warranty
Impeller Type Single
Impeller Stages 1
Electrical supply 230V
AC Power Single Phase
Flow Rate 600 Ltr/min
Water type Sewage
Pump Type Sewage Pump
Duty Type Commercial
Submersible vs Surface Mounted Submersible
Next Day Delivery No
Manufacturers Part Number 1599071621A
