1016L2691

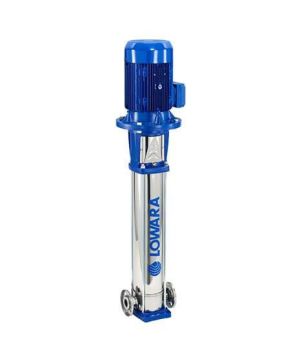

Lowara e-SV 10SV Vertical Multistage Pump - 230v - Single Phase - 2668 Ltr/minThe Lowara e-SV electric vertical multistage pumps are suited for civil, agricultural, industry, water treatment and heating markets.
-
GR-98057222

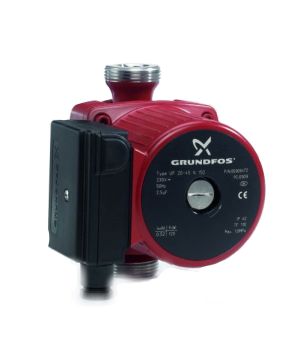

Grundfos UP 20-45N Domestic Hot Water Service Pump Circulator - 230vGrundfos UP 20-45N Domestic Hot Water Service Pump Circulator, 230v. The UP 20-45N is a stainless steel fixed-speed circulating pump suitable for domestic hot-water systems. The UP 20-45N can be connected to an on/off time switch to save energy. The on/off time switch can switch the pump on/off to limit pump operation to periods when hot water is usually required.
-
GR-98057221
Grundfos UP 20-30N Domestic Hot Water Service Pump Circulator - 230vThe UP 20-30N is a stainless steel fixed-speed circulating pump suitable for domestic hot-water systems. The UP 20-30N can be connected to an on/off time switch to save energy.
-
GR-98057205
Grundfos UP 20-15N Domestic Hot Water Service Pump Circulator - 230vThe UP 20-15N is a stainless steel fixed-speed circulating pump suitable for domestic hot-water systems. The UP 20-15N can be connected to an on/off time switch to save energy. The on/off time switch can switch the pump on/off to limit pump operation to periods when hot water is usually required.
-
GMT-5055-JET80-45/1
Trebles Booster Package Set - 24Ltr - 240vReplacement for the JP5 & JP6 Booster Sets. 24 litre booster package set using a Stuart Turner Jet 80-45 pump
-
99164484
Grundfos UP 15-14 B PM 99164484 Comfort Hot Water Circulator Pump - 230v - Single PhaseUP15-14 B PM Comfort Hot Water Circulator Pump which is a driect replacement for the Grundfos BP15-13. There is no difference in performance between the 2 models.
-
GR-MD450200

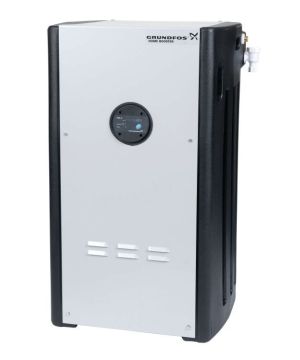

Grundfos Home Booster Packaged Pumping System - 230v - 4.5 Bar VersionThe Grundfos Home Booster is a self-contained cold water booster set is specifically designed to be used in properties where the existing mains water supply is insufficient to meet the standard pressurised hot and cold water system demands.
-
-
96455087
Grundfos CRI 1/3/5 HQQV Seal Kit - 96455087Manufacturers code: 96455087. Grundfos Seal Kit
-
SGR-96509609

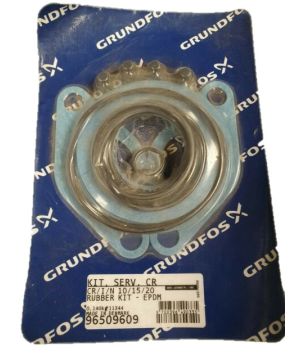

Grundfos CRI 10/15/20 EPDM Gasket Kit - 96509609Manufacturers code: 96509609. Grundfos Seal Kit
-
96511844
Grundfos CRI 10/15/20 HQQE Seal Kit - 96511844Manufacturers code: 96511844. Grundfos Seal Kit
-

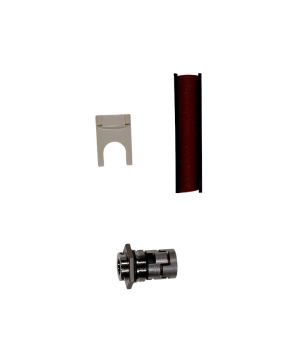

96511845
Grundfos CRI 10/15/20 HQQV Shaft Seal - 96511845Manufacturers code: 96511845. Grundfos Seal Kit
-
96514718
Grundfos CRIE 20-10 AN FGJ I E HQQE 18.5kW Vertical Multi-Stage Pump (with Sensor) 415V (96514718) - ObsoleteThe CRIE with Sensor models have been designed for closed feedback loop variable speed control and are supplied with constant pressure tranducers already fitted. The default control mode is ''constant pressure''.
-
98389343
Grundfos CRIE 1-4 A CA I E HQQE 0.37kW Vertical Multi-Stage Pump (without Sensor) 240V (98389343)The Grundfos CRE, CRIE and CRNE pumps are based on the CR, CRI and CRN pumps and are referred to as E-pumps. The difference between the CR and CRE pump ranges is the motor. CRE, CRIE and CRNE pumps are fitted with a motor with built-in frequency converter.
-
98389344
Grundfos CRIE 1-6 A CA I E HQQE 0.55kW Vertical Multi-Stage Pump (without Sensor) 240V (98389344)The Grundfos CRE, CRIE and CRNE pumps are based on the CR, CRI and CRN pumps and are referred to as E-pumps. The difference between the CR and CRE pump ranges is the motor. CRE, CRIE and CRNE pumps are fitted with a motor with built-in frequency converter.
-
98389346
Grundfos CRIE 1-13 A CA I E HQQE 1.10kW Vertical Multi-Stage Pump (without Sensor) 240V (98389346)The CRIE with Sensor models have been designed for open or closed loop control arrangements. The default control mode is ''Uncontrolled Curve''.
Not sure what you're looking for?
Rated excellent on
We're the largest independent pump distributor in the UK
Call us to get expert advice:
Pressure Boosting Pumps
Pressure boosting pumps raise water pressure for buildings, processes, and irrigation systems where the available supply falls short of requirements. From compact domestic boosters to commercial multistage sets, correct selection delivers consistent pressure at every outlet.
What is a Pressure Boosting Pump?
A pressure boosting pump increases the pressure of water flowing through it, either as a standalone automatic pump or as part of a multi-pump booster set. Multistage designs stack impellers to generate high pressures efficiently from a compact footprint.
How it works
- Water enters the pump from the tank, break tank, or supply pipework.
- One or more impeller stages progressively raise the water pressure.
- An integrated or external controller matches operation to demand.
- Boosted water delivers consistent pressure to outlets and equipment.
Where are Pressure Boosting Pumps Used?
Residential Boosting
Homes and apartments with inadequate supply pressure.
Commercial Buildings
Offices, hotels, and retail requiring stable pressure.
Industrial Processes
Feed pressure for equipment, washing, and production.
Irrigation Systems
Driving sprinklers and drip networks at design pressure.
How to determine which Pressure Boosting Pump is the one you need?
Required Pressure
Determine outlet pressure plus static lift and friction losses.
Flow Demand
Size for realistic simultaneous demand, not the sum of every outlet.
Control Method
Pressure switch, flow controller, or variable speed drive.
Construction
Stainless steel hydraulics suit potable and long-life duties.
Comparing Types of Pressure Boosting Pumps
Automatic Booster Pumps
Self-contained pumps with integrated flow/pressure control.
Horizontal Multistage Pumps
Compact high pressure pumps for boosting duties.

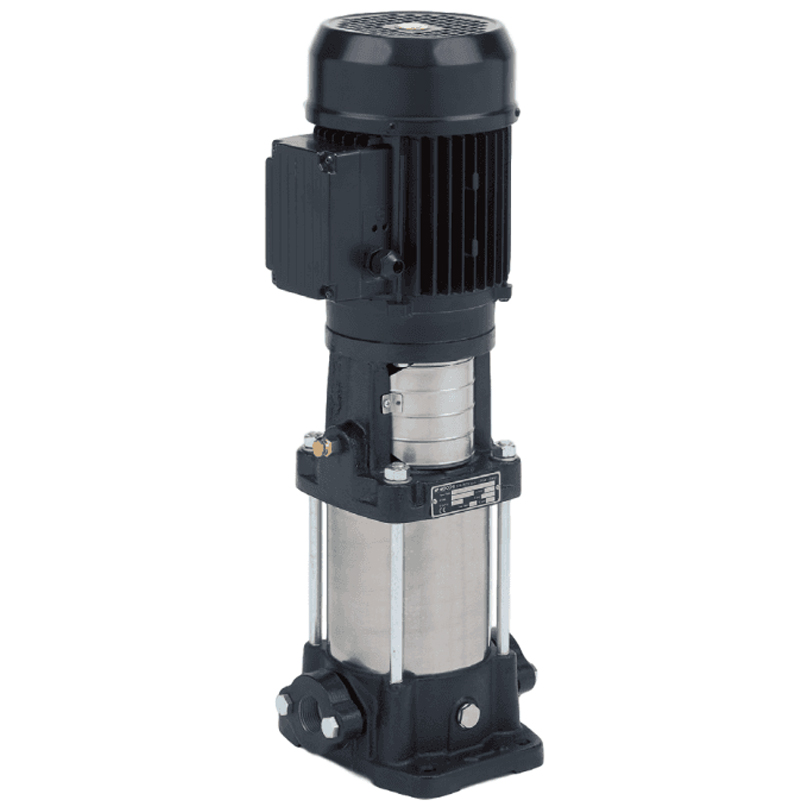

Vertical Multistage Pumps
Space-saving high pressure pumps for commercial systems.
Variable Speed Boosters
Inverter-driven pumps holding precise constant pressure.
We Stock Leading Brands
Here at Pump Sales Direct, we supply high-quality pressure boosting pumps from trusted manufacturers, with expert product support, fast delivery, and manufacturer warranty where applicable.
Related Guides
6 Steps to Choosing a Booster Pump for Seasonal Demand
Read More >
Is Low Water Pressure Holding You Back?
Read More >
Rising to the Challenge: Boosting Water Pressure in Multi-Story Buildings
Read More >
Don't Settle for Average Water Pressure
Read More >
FAQs
What pressure should I boost to?
Domestic systems typically target 2 to 3 bar at outlets, while commercial and process requirements vary; excessive pressure wastes energy and stresses pipework.
What is a multistage pump?
A pump with several impellers in series, each adding pressure, enabling high heads from a compact, efficient unit.
Do I need a pressure vessel with my booster pump?
A small accumulator vessel reduces pump cycling on minor demands and smooths pressure delivery.
Variable speed or fixed speed?
Variable speed pumps hold constant pressure regardless of demand and reduce energy use, ideal where demand varies widely.
Can boosting pumps run dry?
No; dry running damages seals. Choose models with integral dry-run protection or fit external protection.
Troubleshooting your Pressure Boosting Pump
Pressure below setpoint: Check for closed valves, blocked strainers, or demand exceeding pump capacity.
Pump cycling rapidly: Investigate small leaks and verify the accumulator vessel pre-charge.
Dry-run trips: Confirm supply availability and the condition of any suction-side filters.
