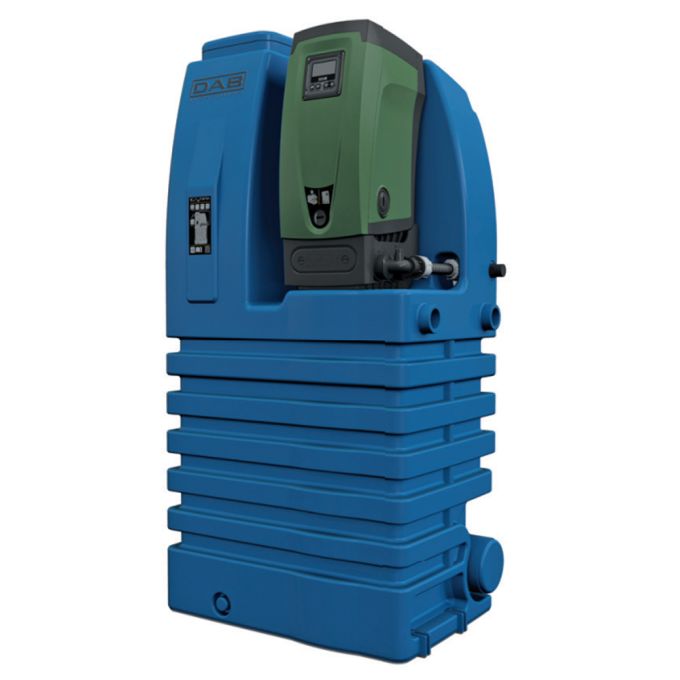

DAB Esybox And Esytank Mains Booster Set - 500 Litre Tank Capacity - 120 Ltr/min - Single Phase

The DAB Esybox & DAB Esytank are specifically designed to work hand in hand for a simple integration. The Esybox self-priming pump provides flow rates of up to 120 litres per minute! and the Esytank has a capacity of 500 litres with the additional option of combining multiple Esytanks together with the simple coupling kit.

Applications & Exaples Of Installation:

• Catering for the water requirement, if the public distribution main is insufficient
• Compliance with civil water regulations where pumping systems cannot draw directly from the distribution mains. Avoiding the reflux and possible contamination of water back into the distribution mains.
• Use as an intermediate tank in tall buildings dividing pressure boosting into several areas.

The Esytank & Esybox combined create a complete pressure boosting system with high-efficiency allowing for:

• Notable reduction of space required
• Dimensions suitable for passing through cellar door ways
• Tank supplied complete with all accessories for rapid installation
• Full integrated and simple installation of Esybox
• Recyclable Materials
• Tank suitable for potable water

Construction Charecteristics:

The DAB Esytank has a maximum water capacity of 480 litres, Suitable for use with drinking water.

Mains water in-let valve for filling from the water mains with integrated float and free discharge in compliance with UNI EN 1717. Overflow connection system type AG as per the same standard (UNI EN 1717 “Protection against pollution of potable water”).
The tank is supplied complete with E.SYDOCK, a suction pipe with foot valve, and a delivery pipe.
The tank is suitable for fixed installation above ground and the four slots on the base allow easy fixing to the ground.
On the front wall there is the possibility of connecting a plug or a discharge pipe with a pipe that can be welded or glued on.
On the rear, at the bottom, there is access to a possible direct drain under the tank.
Both auxiliary discharge points can be drilled as required.
System maintenance is also simple thanks to the handy inspection lid. E.SYTANK has a modular design giving the possibility of installing additional tanks on
three different sides (at the side and rear).
Nothing else is needed, E.SYTANK in combination E.SYBOX to guarantee the correct connection, installation and operation in residential and light commercial
applications.
