DAB Esybox Pop - Home Booster - 6 Bar - 240v
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
3 years warranty With This Product

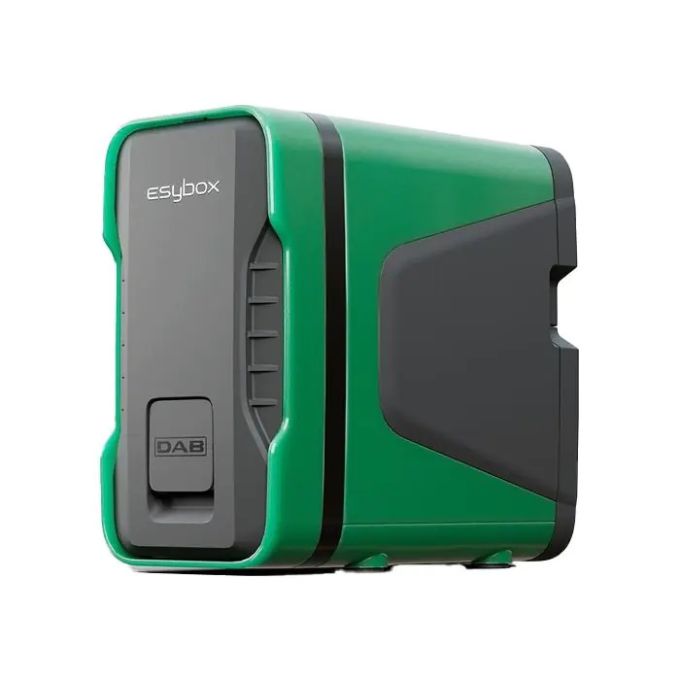

DAB EsyBox Pop
The DAB EsyBox Pop is a fully integrated, all-in-one domestic water pressurisation unit delivering consistent, stable water pressure in residential settings. Recipient of the prestigious iF Design Award 2025, it combines advanced engineering with an exceptionally compact form factor — ideal for installations where space is at a premium.
Typical Applications
- Upper-floor apartments with insufficient mains pressure
- Bathroom and whole-home renovations requiring improved water flow
- Replacement of ageing or noisy pump systems
- Under-sink kitchen installations and Power Shower activation
- Areas subject to water rationing or inconsistent supply
Key Features
Arriving fully pre-assembled, the EsyBox Pop requires no additional ancillary components. Core integrated technology includes:
- Variable Frequency Driver (VFD): Adjusts motor speed to real-time demand, reducing energy consumption and system wear
- Permanent Magnet Motor: High-efficiency, long-life motor with reduced maintenance requirements
- Pressure, Temperature & Flow Sensors: Continuous monitoring for precise regulation, thermal protection, and consumption tracking
- Non-Return Valve: Prevents backflow and protects the integrity of the installation
- Rotatable Fittings: Simplify installation in confined spaces without modifying existing pipework
- Intelligent HMI: Colour-coded LED indicators and three-button configuration for rapid on-site set-up
Performance
Operating on a standard 240V single-phase supply, the EsyBox Pop delivers a maximum flow rate of 65 litres per minute and a maximum working pressure of 6 bar, making it well-suited to demanding domestic pressurisation requirements.
Connectivity
Built-in Wi-Fi (no gateway required) pairs with the DAB H₂D app (iOS & Android) for remote monitoring, fault diagnostics, parameter adjustment, and real-time alert notifications — reducing unnecessary site visits.
Installation
IPX5-rated for sheltered outdoor use. Compatible accessories include the EsyDock (rapid-connection docking station with bypass) and EsyWall (wall-mounting kit).
Technical Specifications
| Dimensions (L x H x W) | 227mm x 210mm x 121mm |
| Inlet / Discharge | 3/4" |
| Voltage | 240V 1Ph 50Hz |
| Cable Length | 1.5m |
| Max Flow Rate | 65 Ltr/min |
| Max Head | 32m |
| Max Pressure | 6 bar |
| Max Water Temperature | 50°C |
Certifications
WRAS | NSF | ACS (under certification process)
| Price | £316.00 |
|---|---|
| Manufacturer | Dab |
| Warranty | 3 years warranty |
| Dimensions | 227mm L x 210mm H x 121mm W |
| Bars | 6 bar |
| Electrical supply | 240V |
| AC Power | Single Phase |
| Cable length | 1.5m |
| Pressure Rating | 6 Bar |
| Flow Rate | 65Ltr/min |
| Max Head | 32m |
| Next Day Delivery | Yes |
| Connection Size | 3/4" |
| Manufacturers Part Number | 60243046 |
