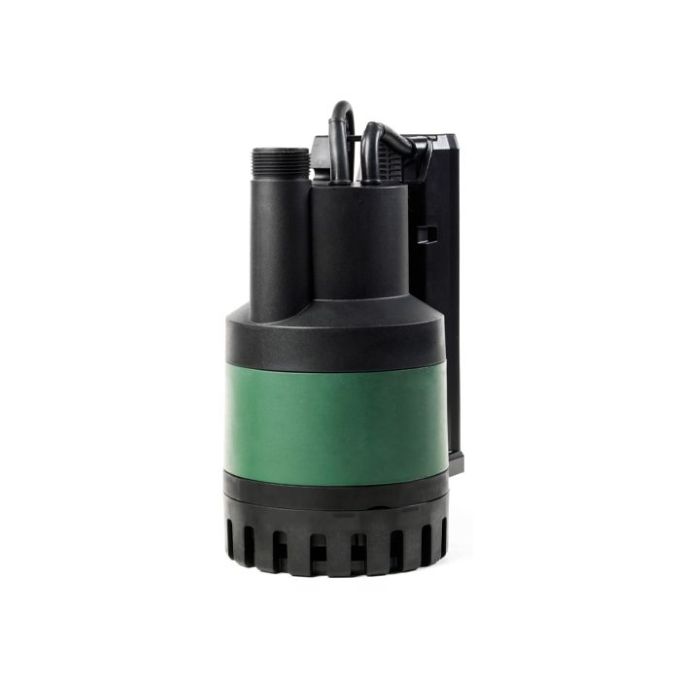

DAB NOVA UP 300M-AE Submersible Pump - 240v - Single Phase - 166 Ltr/min
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
Applications
The vertical delivery draining submersible pump is suitable for domestic automatically operated fixed applications, for draining basements and garages that are subject to flooding. This version is particularly suited for narrow well installation requiring automatic suction up to 2/3 mm. Thanks to its compact, easy to handle shape, it may also be used as a portable pump for emergencies such as lifting water from tanks or rivers, emptying swimming pools, fountains, excavations, and pedestrian subways. It is also ideal for gardening, and hobby applications in general. This pump can be used with liquids containing solid particles of up to 10 mm in size. The electronic level selector allows fixed installation, ensuring automatic operation, and enabling the selection of the level of the liquid for automatic start. With removable filter, it is capable of suction of up to a minimum of 2/3 mm (filter removed)
Construction Features Of The Pump
Hydro resistant technopolymer pump body, cover, and suction grid. Stainless steel motor, roto shaft, and bolts and screws. Threefold seal with interposed rings with oil pre-chamber.
Construction Features Of The Motor
Submersible type continuous duty asynchronous motor. Stator enclosed in airtight stainless steel casing, with an outer cover that protects the wiring and the capacitor. Rotor running on permanently lubricated ball bearings, oversized to ensure low noise and durability. Built-in thermal-amperometric protection and permanently connected capacitor.
| Price | £230.20 |
|---|---|
| Manufacturer | Dab |
| Warranty | 1 year warranty |
| Electrical supply | 240V |
| AC Power | Single Phase |
| Flow Rate | 166 Ltr/min |
| Max Head | 8m |
| Water type | Dirty Water |
| Pump Type | Submersible |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Submersible |
| Next Day Delivery | No |
| Manufacturers Part Number | 60153572 |
