DAB Vortex BWO 155V Timer Hot Water Circulator - 11/4" - 240v - Single Phase - NO DESCRIPTIVE DATA
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product

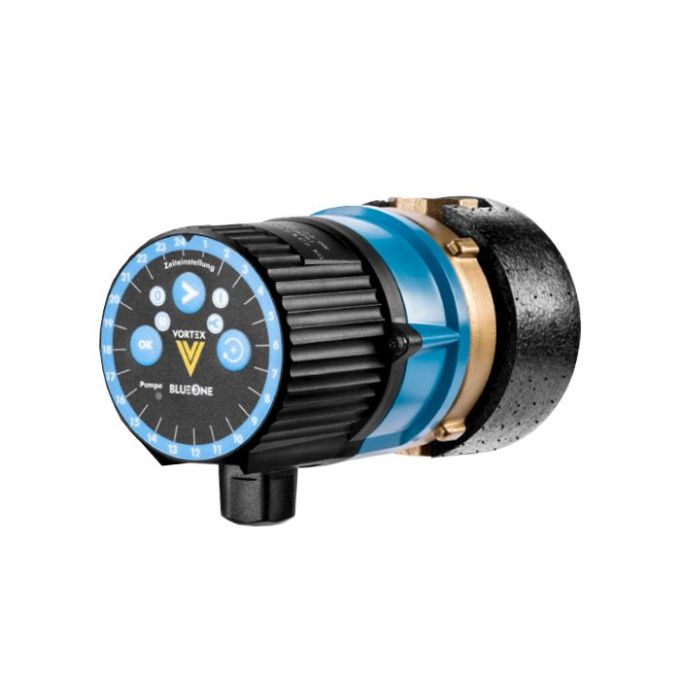

The DAB Votex BWO 155V is a hot water circulator pump with a permanent magnet drive and spherical motor technology.
Permanent Magnet Drive
The BlueOne DHW circulation pump generation is driven by a highly efficient, electronically commutated DC motor. A voltage transformer is integrated in the module cap for AC operation. All pumps have continuous manual speed adjustment.
Spherical Motor Technology
The shaftless spherical motor does not feature a revolving bearing shaft. Instead, the stator transfers the rotating magnetic field directly to the permanent magnet rotor on a fixed bearing pin. The rotor bearing is self-adjusting and lubricated by the water. The rotor thus runs with zero play and is virtually noise free. Water carrying parts can be easily cleaned if necessary. The rotor can be replaced when required.
Z – timer module
The pump runs every day at the set times. The set runtimes are retained (non-volatile) in case of power failure.
- 24-hour clock face
- Smallest increment: 30 minutes
| Price | £328.24 |
|---|---|
| Manufacturer | Dab |
| Warranty | 1 year warranty |
| Electrical supply | 240V |
| AC Power | Single Phase |
| Flow Rate | 15 Ltr/min |
| Max Head | 1.3m |
| Water type | Clean or Discoloured |
| Pump Type | Circulator Pump |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Surface Mounted |
| Next Day Delivery | No |
| Manufacturers Part Number | 433111031 |
