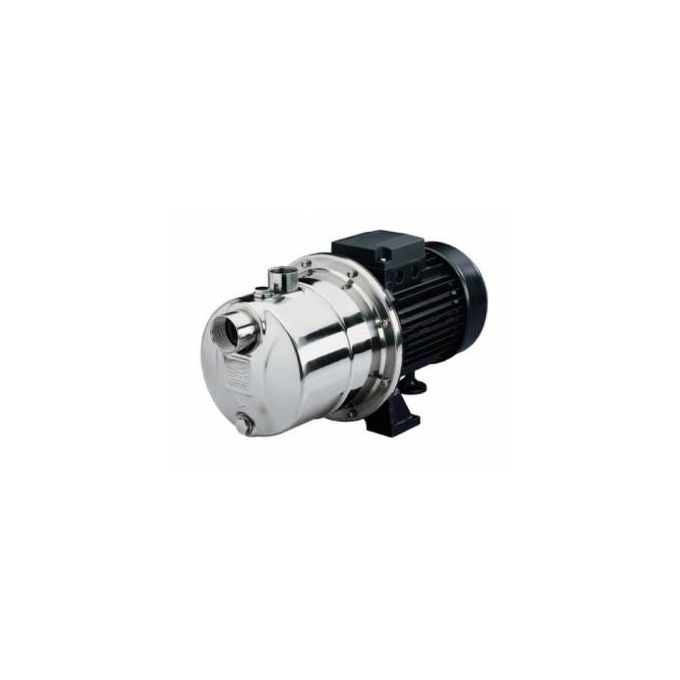

Ebara JEXM/A 100 Centrifugal Pump - 230v - Single Phase - 70 Ltr/min

The electric pumps of the JESX – JEX series are electric pumps in AISI 304 stainless steel. These ... Show More
The electric pumps of the JESX – JEX series are electric pumps in AISI 304 stainless steel. These are self-priming pumps equipped with Venturi group (ejector and diffuser), which are easy to use and light thanks to their small size. Constructively they have the pump body, the support, the seal bearing disc in AISI 304 steel. They are equipped with an AISI 303 shaft (for the part in contact with the liquid). The impellers are different depending on the model: for the JESX electric pumps the impeller is in PPE + PS reinforced with glass fibres, while for the JEX the impeller is in AISI 304. For both versions the mechanical seal is in Ceramic/Carbon/NBR. The motors are 2-pole, asynchronous, self ventilated. High energy efficiency IE3 starting from 0.75 kW Show Less
In stock
Part Number:
1665050000

Free Delivery On Orders Over £50

See more product information
£602.78 RRP £391.81 £326.51
Add to Compare Add to wishlist

The electric pumps of the JESX – JEX series are electric pumps in AISI 304 stainless steel. These are self-priming pumps equipped with Venturi group (ejector and diffuser), which are easy to use and light thanks to their small size. Constructively they have the pump body, the support, the seal bearing disc in AISI 304 steel. They are equipped with an AISI 303 shaft (for the part in contact with the liquid). The impellers are different depending on the model: for the JESX electric pumps the impeller is in PPE + PS reinforced with glass fibres, while for the JEX the impeller is in AISI 304. For both versions the mechanical seal is in Ceramic/Carbon/NBR. The motors are 2-pole, asynchronous, self ventilated. High energy efficiency IE3 starting from 0.75 kW

PUMP TECHNICAL DATA
• Total head from 11.5 to 49 m
• Capacity from 0.3 to 4.5 m3/h
• Maximum operating pressure 6 bar
• Maximum liquid temperature 45°C
• Maximum working width 8 m

More Information
Price £326.51
Manufacturer Ebara
Guarantee 1 year guarantee
Impeller Type Single
Impeller Stages 1
Electrical supply 230V
AC Power Single Phase
Flow Rate 70 Ltr/min
Water type Clean or Discoloured
Pump Type Centrifugal Pump
Duty Type Domestic
Submersible vs Surface Mounted Surface Mounted
Manufacturers Part Number 1665050000
