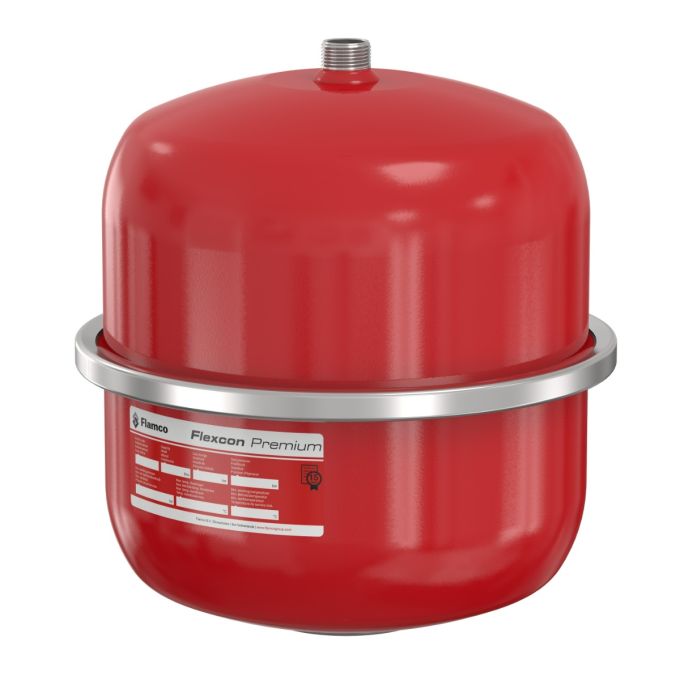

Flamco Flexcon Premium 12 Expansion Vessel - Pre-Charge 2.5 Bar - 6 Bar - 12 Litre

For sealed heating installations (acc. to EN12828) and chilled water (cooling) installations.
Expansion vessels keep the pressure of the installation stable by temporarily absorbing the extra water volume that is generated by heating or cooling installations.

Additional Information:

• Sustainable expansion cessels thanks to innovative technology.
• The Flexcon Premum expansion vessels have a plastic membrane (12-35 Litres) made of thermoplastic polyolefin (TPO) THe new membrane has a high flexibility and low permeability. The environmental performance of the new membran is much better and TOP can be burned claener or recycled into products more effectively.
• The plastic membrane is much lighter because it requires up to 50% less material. This saves raw materials, energy (production) and fuel (transport) and results in a large reduction of CO2 emissions.
• The box is made from FSC certified cardboard and the version with the lowest available CO2 footprint has been selected. The manual is printed on FSC certified paper.
• A long service life is guaranteed with a 15-year warranty and therefore also saves on maintenance.
• Extremely low permeability of the diaphragm ensures that pre-charge pressure is maintained for longer.
• THe flexible diagrams, with rolling action are performed and, in contrast to a bad type bladder, prevent stretching so that their properties are preserved over the long term.
• Two halves of the vessel are coated prior to assembly, not afterwards. Therefor there is no risk of corrosion on the clamp ring and the diaphragm does not have a service life-reducing thermal shock during production.
• THe unique zinc plated steel clench ring construcion clamps the diaphragm between the two deep drawn steel vessel halves. This not only ensures a perfect seal but also prevents mechanical damage of the diaphragm during use (load distribution over the entire clamping area and not at 1 central suspension point)
• The gas side is filled with nitrogen, and not with air, so that corrosion is prevent and the pressure loss is even more limited.
• The nigtogen air valve is countersunk on the vessel to protect it from damage, It is in turn further protected by a cover plate made from recycled plastic.
• The profile on the diaphragm prevents it from sticking to the inside wall of the vessel and ensures inflow of expansion water at the earliest increase in pressure.
• The uncoated taper water connection thread ensures easy and water tight installation.
• Finished with a gleaming epoxy-powder coating.
• Each vessel is functionally tested before it leaves the factory.
