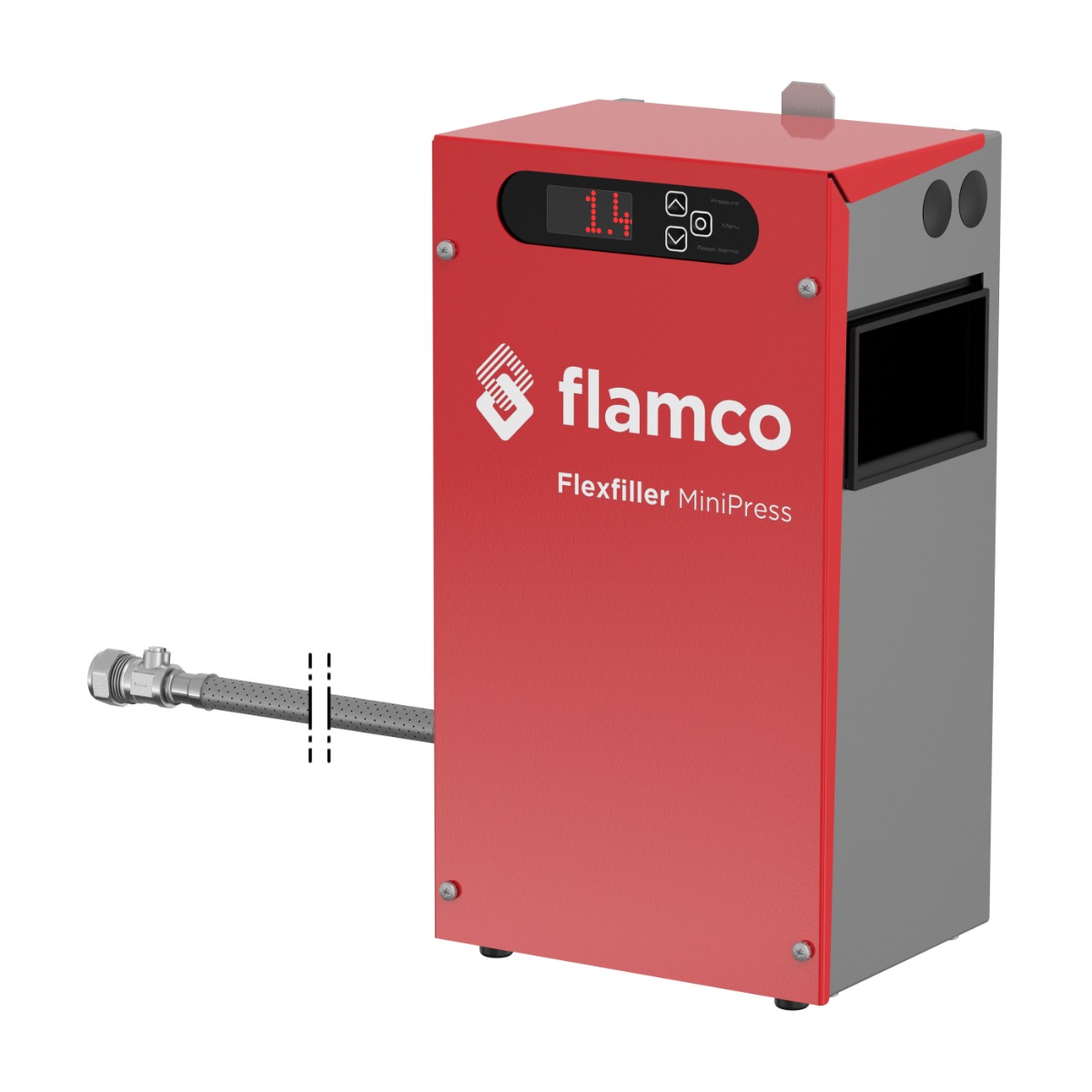

Flamco Flexfiller Mini 230D Pressurisation Unit - Digital - Twin Pump

Part Number:
17456
This item is now obsolete. Please view our alternatives below.
£1,703.78 RRP £1,014.00 £845.00
In stock Hurry! Last Few Remaining

Free Delivery Over £50

Next Day Delivery Available

Digital Mini Flexfiller unit. Twin Pump Version.
1 year warranty With This Product

Compact and totally enclosed digital pressurisation units with electronic pressure transducer and user-friendly microprocessor for use on sealed system in order to provide a minimum system pressure requirement.

The Flexfiller Mini Digital is a slim wall mounted, low flow rate (0.4 l/min) top-up pressurisation unit with 2 litre internal break tank. Ideal for small commercial or large domestic applications. For use on heating systems utilising a 300 litre expansion vessel or less, or chilled systems utilising a 50 litre expansion vessel or less. Available in single or twin pump configuration.

Product Features:

  • For system volumes up to 2,600 litres.
  • Fluid Protection Category 5 (AB Weir Overflow).
  • Onscreen Service Reminder - 12 Months.
  • Electric pump, 230V 50Hz 1ph.
  • Colour: White (RAL 9003).
  • MODBUS RTU Communication Protocol.
  • Password protected.
  • Sequential programming menu.
  • Pressure setting in 0.1 bar increments.
  • Pump pulse option.
  • Flood Protection (Pump Runtime Limiter, Excessive Start Alarm).
  • Event logging: Alarm activations, Pump Run counter (activations per pump), Cumulative run timer (hours per pump), Electrical interuption.
  • Volt free contacts: Common Alarm (N/C), High Pressure Alarm (N/O), Low Pressure Alarm (N/O), Sensor Health (N/O), Pump 1 Health (N/O), Pump 2 Health (N/O).

Operating Conditions:

  • System temperature range at point of connection: 5 ºC / 85 ºC.
  • Ambient temperature range: 5 ºC / 40 ºC.
  • Pressure rating: PN 10.
  • Relative humidity 95% non-condensing.
  • Noise Rating Data: < 75 dBA.

Certifications and Standards Applied:

  • PED 2014/68/EU Sound Engineering Practice.
  • IEE - Electrical Safety Guidance.
  • EMC 2004/108/EC.
  • BS 7074 Parts 1 to 3.
  • Machinery Directive 2006/42/EC.
  • Electronic Components have been tested and comply with the EMC Directives.
  • EN 61000-6-1: Generic Standards – Immunity standard for industrial environments.
  • EN 61000-6-2: Generic Standards – Immunity standard for industrial environments.
  • EN 61000-6-3: Generic Standards – Emission standard for residential, commercial and light industrial environment.
  • CE marked components, where applicable.
  • WRAS approved float valve to BS1212.
  • IP54 (BS EN60529) rated controller.
More Information
Price £845.00
Manufacturer Flamco
Warranty 1 year warranty
Dimensions D150 x W240 x H480mm
Bars 3 bar
Electrical supply 230V
AC Power Single Phase
Switch None
Duty Type Commercial
Pump Type Pressurisation Unit
Next Day Delivery Yes
Manufacturers Part Number 17456
