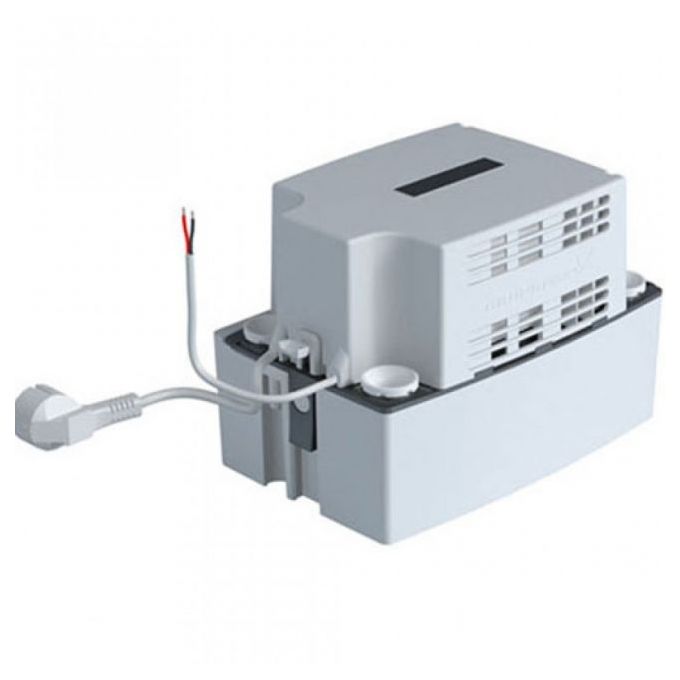

Grundfos Conflict 1 Automatic Condensate Removal Pump - 240v

Zoom

Click on image to zoom

Grundfos Conflict 1 Automatic Condensate Removal Pump - 240v
Suitable for the pumping of condensate which is collected below sewer level or which cannot flow to the sewage system or drain of the building by means...
Suitable for the pumping of condensate which is collected below sewer level or which cannot flow to the sewage system or drain of the building by means of a natural downward slope.
Read more
Part Number: GR-97936173

Share this product

Downloads & Manuals

Download Datasheet PDF

£267.00 RRP

£79.99 [Ex. VAT]
Including VAT £95.99
OR
FREE DELIVERY
*on orders over £50
1 year guarantee
EUP Ready
Description

Product Details

Typical applications:

  • Condensate boilers. A 200 kW boiler can be drained up to 5 m duty point
  • For condensate with a pH value above 2.5
  • For condensate from air-conditioning systems, cooling and refrigeration systems, air dehumidifiers and evaporators
  • For condensate with a pH value below 2.5, useConlift2 pH+

Functions:

  • Condensate runs by natural fall through a hose into the tank
  • Liquid level in the tank is controlled automatically by a float switch
  • Condensate is pumped through the discharge hose to the drain
  • Safety overflow switch with a 1.7-metre electric cable which can be connected to the condensate boiler and set to stop the boiler in case of an alarm
  • Maintenance-free shaded-pole motor

Features:

  • Four inlets with grommets to seal and fix the inlet hose
  • 180 °-rotatable flange for selection of optimum discharge position
  • IP24 cover for protection against splashing water
  • Two snap-fasteners enabling easy access to the tank in case of service
  • Pump operation test button
  • Stepped outlet socket for ∅8 and ∅10 mm hoses
  • Non-return valve with bayonet connection for easy service
  • Special inlet design preventing sedimentation and evaporation from boiler
  • Stainless-steel motor shaft additionally protected by a shaft seal
  • Self-venting hydraulics
  • Rotating lip seal protecting bearing and motor against evaporation from tank
  • Special float switch designed to prevent evaporation from tank and corrosion on micro switches
  • Alignment wheel enabling easy adjustment in wall-hung installations
  • Suitable for wall-hung and floor-standing installation
Delivery & Returns

Pump Sales Direct (PSD) offers a free standard delivery service (2-3 working days) to mainland UK*. The free standard delivery service relates to all pumps on our website and also individually purchased spares or accessories over the value of £50 (before VAT). Individual spares or accessories purchased under £50 will incur a £6.95 delivery charge.

PSD also offers a next day delivery service at a charge of £7.50*, provided we receive your order before 3:30pm Monday to Friday (excludes Weekends and Bank Holidays).

*Excludes UK Islands, Republic of Ireland, Northern Ireland and Scottish Highlands.

UK Delivery Charge Options:-

Standard Delivery (2-3 working days)* - FREE

Next Working Day Delivery (on orders placed before 3:30pm)* - £7.50

Next Working Day Delivery before 10.30 am (on orders placed before 3:30pm)* - £25.00

Next Working Day Delivery before 12.00pm (on orders placed before 3:30pm)* - £15.00

Saturday AM Delivery before 12.00pm*- £35.00

Scottish Highlands Standard Delivery - £17.50

UK Islands & Republic of Ireland Standard Delivery - £25.50

*Excludes UK Islands, Republic of Ireland, Northern Ireland and Scottish Highlands.

Additional Information

Additional Information

Manufacturer Grundfos
Guarantee message 1 year guarantee
Dimensions 183mm (h) x 165mm (w) x 258mm (d)
Bars No
Impeller type No
Electrical supply 240V
AC Power Single Phase
Speed No
Cable length No
Flow rate 9.8 Ltr/min
Max Head 5.7m
Pump Operation No
