Grundfos Magna1 40-100F - Variable Speed Circulator Pump - 230v
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product

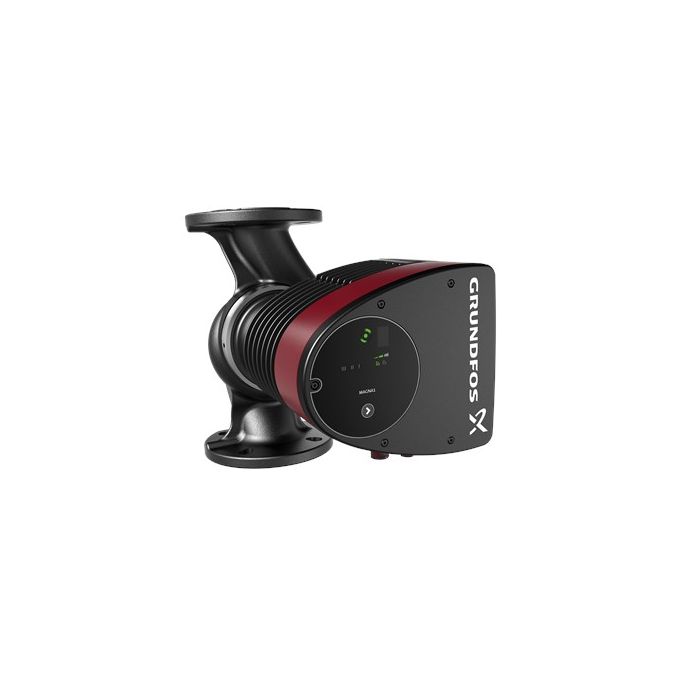

Grundfos MAGNA1 40-100 F Circulator Pump (99221304)
The Grundfos MAGNA1 40-100 F is a high-efficiency variable-speed circulator pump offering reliable, energy-saving performance for heating and cooling systems where straightforward control and monitoring is required. Based on proven Grundfos MAGNA technology and a permanent-magnet motor, it is an ideal, cost-effective replacement for older fixed-speed circulators. It features a flanged DN40 connection, a maximum head of 10 m and a PN6 / PN10 pressure rating.
Key Features
- High-efficiency permanent-magnet motor: An electronically commutated motor with integrated frequency converter delivers low power consumption and removes the need for external motor protection
- Maintenance-free canned-rotor design: Pump and motor form a single sealed unit with no shaft seal and only two gaskets, with bearings lubricated by the pumped liquid for an extremely low life-cycle cost
- Nine control settings: Three proportional-pressure, three constant-pressure and three constant-speed curves selected via a simple light-field interface
- Simple BMS connectivity: Fault-relay output and digital start/stop input allow integration with basic building management and remote control
- Grundfos GO compatible: Wireless connection to the Grundfos GO app for fault messages and basic settings
- Energy Efficiency Index (EEI) ≤ 0.20: Best-in-class efficiency for its class, fully compliant with ErP requirements
Technical Specifications
| Product number | 99221304 |
|---|---|
| Range | MAGNA1 |
| Configuration | Single-head |
| Pump housing material | Cast iron |
| Connection | Flanged (DN40) |
| Nominal bore | DN40 |
| Port-to-port length | 220 mm |
| Maximum head | 10 m |
| Maximum system pressure | PN6 / PN10 |
| Power supply | 1 x 230-240 V, 50 Hz (single-phase) |
| Liquid temperature range | -10 °C to +110 °C |
| Enclosure / insulation class | IPX4D / Class F |
Applications
Suitable for circulating liquids across a broad range of applications, including heating in commercial and residential buildings, air-conditioning and cooling systems, district heating and cooling networks, ground-source heat pump systems and domestic hot water recirculation.
Summary
The Grundfos MAGNA1 40-100 F (99221304) is a dependable, energy-efficient circulator that delivers reliable performance with straightforward setup and control. It is an excellent, cost-effective solution for new installations and as a direct replacement for older, less efficient pumps.
| Price | £1,087.35 |
|---|---|
| Manufacturer | Grundfos |
| Warranty | 1 year warranty |
| Bars | 10 bar |
| Impeller Type | Single |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Speed | Variable |
| Max Head | 10m |
| Water type | Clean or Discoloured |
| Pump Type | Circulator Pump |
| Switch | None |
| Duty Type | Domestic |
| Next Day Delivery | No |
| Manufacturers Part Number | 99221304 |
