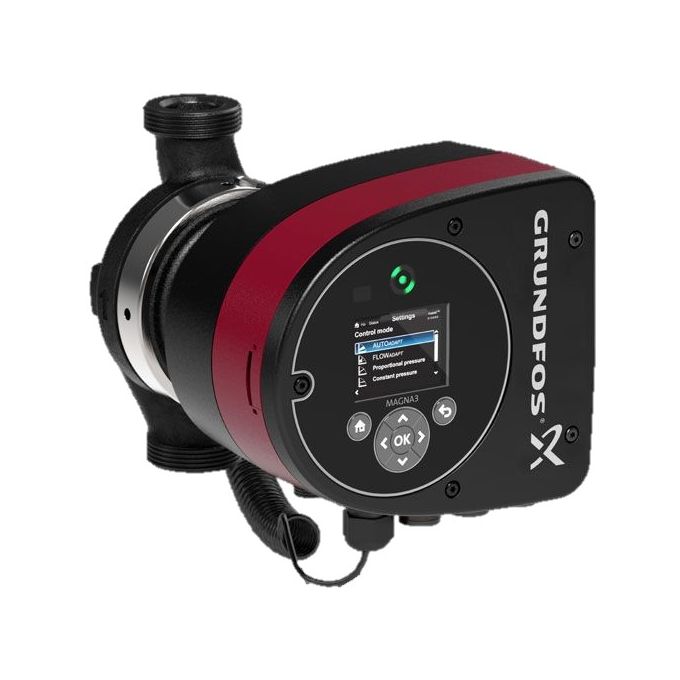

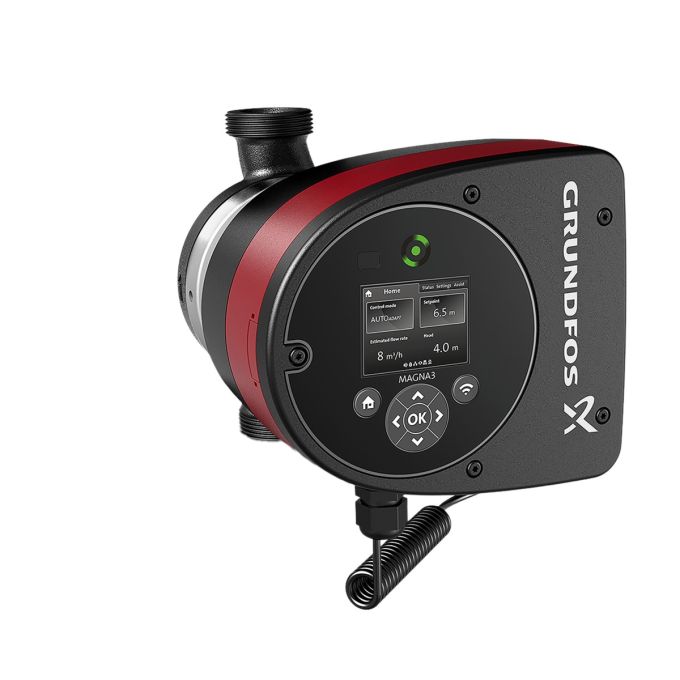

Grundfos Magna3 25-100 Variable Speed Circulator - 180mm - 240v

Zoom

Click on image to zoom

More Images

Grundfos Magna3 25-100 Variable Speed Circulator - 180mm - 240v
Variable Speed Single Head Circulator 240V. The MAGNA3 is a single-phase pump with no maintenance requirements suitable for hot water service circulation...
Variable Speed Single Head Circulator 240V. The MAGNA3 is a single-phase pump with no maintenance requirements suitable for hot water service circulation with extremely low Life Cycle Cost.
Read more
Part Number: MAG3-97924247

Share this product

£886.80 RRP

£442.00 [Ex. VAT]
Including VAT £530.40
OR
FREE DELIVERY
*on orders over £50
2 years guarantee
EUP Ready
Description

Product Details

Setting the MAGNA3 is simple – just install the pump and leave it on the AUTOADAPT setting, the pump will then analyse the heating system demands and find the optimum setting. It will then continuously adjust its operation to deal with changing system demands.

Characteristic features:

  • AUTOADAPT.
  • FLOWADAPT and FLOWLIMIT (more than a pump function as it reduces the need for pump throttling valves).
  • Proportional-pressure control.
  • Constant-pressure control.
  • Constant-temperature control.
  • Constant-curve duty.
  • Max. or min. curve duty.
  • Automatic Night Setback.
  • No external motor protection required.
  • Insulating shells supplied with single-head pumps for heating systems.
  • Large temperature range where the liquid temperature and the ambient temperature are independent of each other.
Delivery & Returns

Pump Sales Direct (PSD) offers a free standard delivery service (2-3 working days) to mainland UK*. The free standard delivery service relates to all pumps on our website and also individually purchased spares or accessories over the value of £50 (before VAT). Individual spares or accessories purchased under £50 will incur a £6.95 delivery charge.

PSD also offers a next day delivery service at a charge of £7.50*, provided we receive your order before 3:30pm Monday to Friday (excludes Weekends and Bank Holidays).

*Excludes UK Islands, Republic of Ireland, Northern Ireland and Scottish Highlands.

UK Delivery Charge Options:-

Standard Delivery (2-3 working days)* - FREE

Next Working Day Delivery (on orders placed before 3:30pm)* - £7.50

Next Working Day Delivery before 10.30 am (on orders placed before 3:30pm)* - £25.00

Next Working Day Delivery before 12.00pm (on orders placed before 3:30pm)* - £15.00

Saturday AM Delivery before 12.00pm*- £35.00

Scottish Highlands Standard Delivery - £17.50

UK Islands & Republic of Ireland Standard Delivery - £25.50

*Excludes UK Islands, Republic of Ireland, Northern Ireland and Scottish Highlands.

Additional Information

Additional Information

Manufacturer Grundfos
Guarantee message 2 years guarantee
Dimensions 180mm (h) x 239mm (d) x 180mm (w)
Bars No
Impeller type No
Electrical supply 240V
AC Power Single Phase
Speed No
Cable length No
Flow rate 156 Ltr/min
Max Head 9m
Pump Operation No
