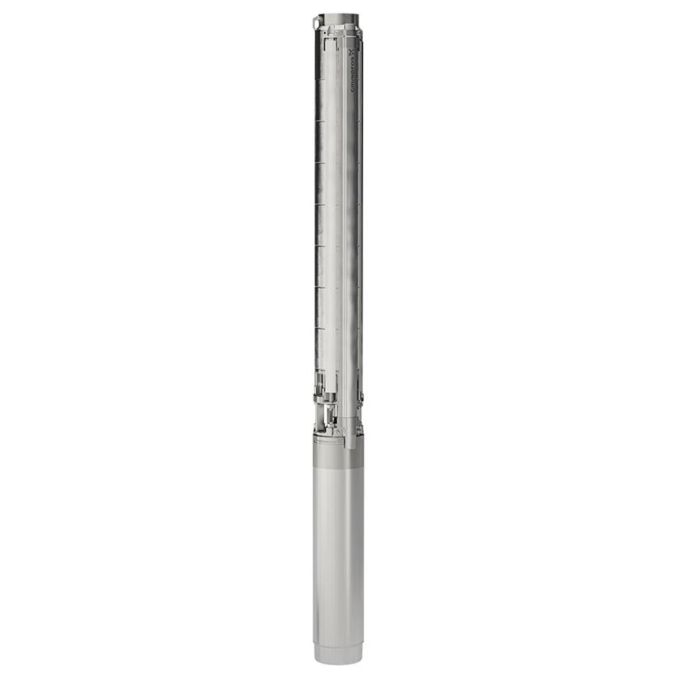

Grundfos SP14-4 Submersible Borehole Pump - 240v

Zoom

Click on image to zoom

More Images

Grundfos SP14-4 Submersible Borehole Pump - 240v
Grundfos's range of SP Multi-stage submersible pumps for raw water supply, groundwater lowering and pressure boosting. These pumps are suitable for pumping...
Grundfos's range of SP Multi-stage submersible pumps for raw water supply, groundwater lowering and pressure boosting. These pumps are suitable for pumping clean, thin, non-agressive liquids without solid particles or fibres.
Read more
Part Number: GR-98699339

Share this product

£1,027.00 RRP

£719.00 [Ex. VAT]
Including VAT £862.80
OR
FREE DELIVERY
*on orders over £50
1 year guarantee
EUP Ready
Description

Product Details

SP 14-4
Multi-stage submersible pump for raw water supply, groundwater lowering and pressure boosting. The pump is suitable for pumping clean, thin, non-agressive liquids without solid particles or fibers.

The pump is made entirely of Stainless steel DIN W.-Nr. EN 1.4301 and suitable for horizontal and vertical installation. The pump is fitted with a built-in non-return valve.

The motor is a 1-phase motor of the canned type with a sand shield, liquid-lubricated bearings and pressure-equalizing diaphragm.

Liquid:
Pumped liquid:    Water
Maximum liquid temperature:    104 °F
Max liquid temperature at 0.15 m/sec:    104 °F
Selected liquid temperature:    68 °F
Density:    62.29 lb/ft³
Technical:
Pump speed on which pump data is based:    2900 rpm
Rated flow:    61.6 US gpm
Rated head:    54.14 ft
Shaft seal for motor:    LIPSEAL
Approvals on nameplate:    CE,EAC
Curve tolerance:    ISO9906:2012 3B
Motor version:    T40
Materials:
Pump:    Stainless steel
     EN 1.4301
     AISI 304
Impeller:    Stainless steel
     EN 1.4301
     AISI 304
Delivery & Returns

Pump Sales Direct (PSD) offers a free standard delivery service (2-3 working days) to mainland UK*. The free standard delivery service relates to all pumps on our website and also individually purchased spares or accessories over the value of £50 (before VAT). Individual spares or accessories purchased under £50 will incur a £6.95 delivery charge.

PSD also offers a next day delivery service at a charge of £7.50*, provided we receive your order before 3:30pm Monday to Friday (excludes Weekends and Bank Holidays).

*Excludes UK Islands, Republic of Ireland, Northern Ireland and Scottish Highlands.

UK Delivery Charge Options:-

Standard Delivery (2-3 working days)* - FREE

Next Working Day Delivery (on orders placed before 3:30pm)* - £7.50

Next Working Day Delivery before 10.30 am (on orders placed before 3:30pm)* - £25.00

Next Working Day Delivery before 12.00pm (on orders placed before 3:30pm)* - £15.00

Saturday AM Delivery before 12.00pm*- £35.00

Scottish Highlands Standard Delivery - £17.50

UK Islands & Republic of Ireland Standard Delivery - £25.50

*Excludes UK Islands, Republic of Ireland, Northern Ireland and Scottish Highlands.

Additional Information

Additional Information

Manufacturer Grundfos
Guarantee message 1 year guarantee
Dimensions No
Bars No
Impeller type No
Electrical supply 240V
AC Power Single Phase
Speed No
Cable length No
Flow rate No
Max Head No
Pump Operation No
