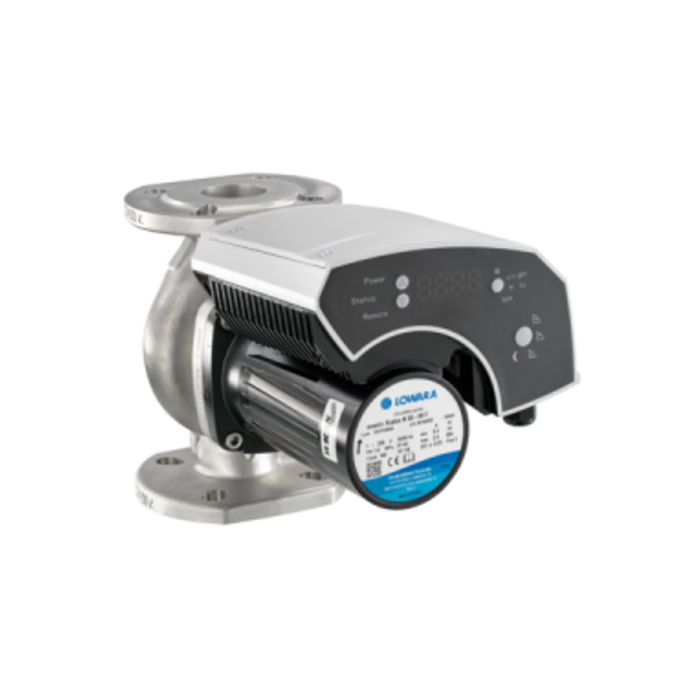

Lowara Ecocirc XL Plus N 50-120 F Circulating Pump - Single Phase - 230V
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
The Lowara Ecocirc XLplus N 50-120 F (SKU: E510150AA) is a high-efficiency intelligent circulating pump designed for commercial heating, air conditioning, and cooling systems. This stainless steel pump is specifically engineered for domestic hot water applications, offering superior performance and energy efficiency.
Key Features
-
Flow Rate: Up to 70 m³/h for single-head pumps
-
Maximum Head: 12 metres
-
Port Size: DN50 (both inlet and outlet)
-
Power Supply: 230V AC, 50/60 Hz
-
Protection Class: IP44
-
Insulation Class: Class 155 (F)
-
Maximum Operating Pressure: 10 bar (PN 10)
-
Temperature Range: -10°C to +110°C for pumped liquid
-
Ambient Temperature: 0°C to +40°C during operation
Advanced Control Modes
-
Proportional pressure control
-
Constant pressure control
-
Constant speed
-
Night Mode
-
Constant temperature control
-
Differential temperature control
Communication and Connectivity
-
Modbus RTU and BACnet MS/TP communication capabilities
-
Digital input for external control
-
Analogue inputs (0-10V and 4-20mA)
-
Digital output for status monitoring
User-Friendly Interface
The pump features a control panel with a digital display for easy operation and monitoring of key parameters such as power consumption, flow rate, head, and speed.
Energy Efficiency
Equipped with an electronically commutated permanent magnet motor, this pump is designed to significantly reduce power consumption and comply with the EuP directive requirements.
Applications
Ideal for:
-
Hot water heating systems
-
Air conditioning and cooling systems
-
Domestic hot water systems
-
Solar systems
-
Geothermal systems
The Lowara Ecocirc XLplus N 50-120 F combines advanced technology with robust construction, making it a reliable and efficient choice for various commercial and industrial applications requiring precise fluid circulation and temperature control.
| Price | £2,376.00 |
|---|---|
| Manufacturer | Lowara |
| Warranty | 1 year warranty |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Flow Rate | 1170 Ltr/min |
| Max Head | 12m |
| Water type | Clean Water |
| Pump Type | Circulator Pump |
| Duty Type | Commercial |
| Next Day Delivery | Yes |
| Manufacturers Part Number | E510150AA |
