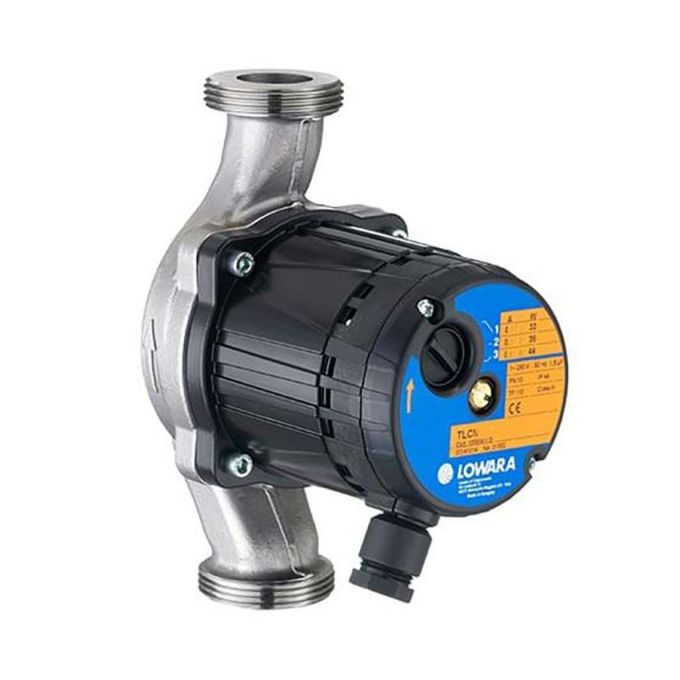

Lowara TLCN 25-6 Hot Water Circulator Pump - 230v - Single Phase - 130mm
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
The TLCN 25-6 is a residential hot water secondary circulator for the circulation of sanitary water. The TLCN's motor is a manually set three speed wet motor.
Pump
- Flow rate: up to 4 m3/h.
- Head: up to 6 m.
- Temperature of pumped liquid: +2°C ÷ +110°C (recommended up to 65°C). Avoid condensation and ice formation.
- Maximum operating pressure: 10 bar (PN 10).
- Impeller: made of composite material.
- Wear ring: ceramic.
Motor
- Wet rotor type, with bearings lubricated by the pumped liquid.
- Axial and radial bearings made of ceramic.
- Single-phase 230 V 50 Hz power supply.
- Terminal box axially integrated in the motor.
- Three speed hand selector motor.
- Insulation class 180 (H).
- Protection class IP 44.
Materials
- Pump Body - Stainless steel
- Impeller - Composite material
- Shaft - Ceramic
- Inner Jacket - Stainless steel
- Wear Ring - Ceramic
- Bearings - Ceramic
- Gaskets - EPDM
TLC : Series name
- N : Stainless steel version
- 25 : Port nominal diameter
- 6 : Maximum head in m.
Weight: 3kg
| Price | £266.70 |
|---|---|
| Manufacturer | Lowara |
| Warranty | 1 year warranty |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Water type | Clean or Discoloured |
| Pump Type | Circulator Pump |
| Duty Type | Commercial |
| Inlet Connection | 1 1/2" Threaded |
| Outlet Connection | 1 1/2" Threaded |
| Next Day Delivery | Yes |
| Port To Port | 130mm |
| Connection Type | Threaded |
| Manufacturers Part Number | 105006127 |
