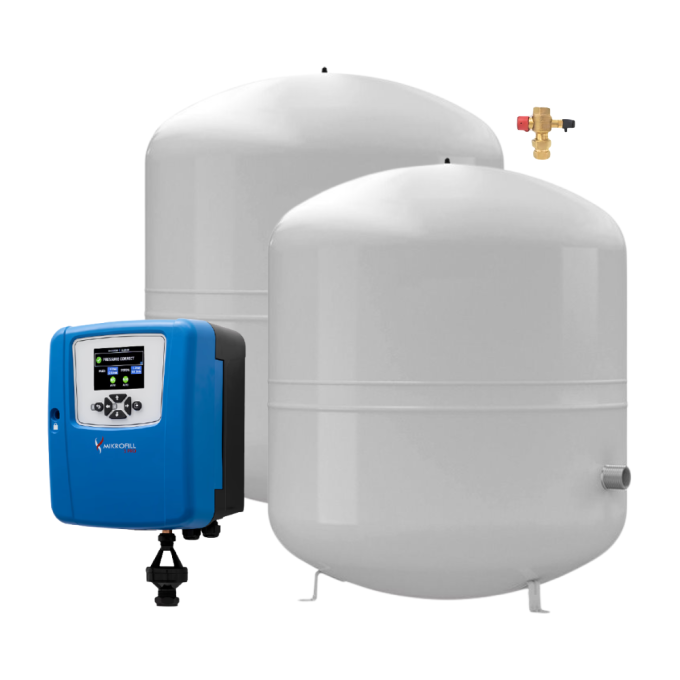

Mikrofill 3 PRO + 2 x 500 Litre MikroPro Vessels Pressurisation Set - Service Valve Included

Mikrofill 3 PRO with 2 x 500 Litre MikroPro Expansion Vessel Bundle

This bundle pairs the Mikrofill 3 PRO pumpless pressurisation unit with two 500 litre MikroPro expansion vessels (providing 1000 litres of combined expansion capacity), giving specifiers, installers, and facilities managers a complete, pre-matched pressurisation and expansion solution for domestic and commercial heating and cooling systems. The two 500 litre vessels are floor-standing, and purchasing the products as a bundle extends the standard warranty on the Mikrofill 3 PRO from 2 years to 4 years.

This bundle set is supplied with a service valve included as standard.

Mikrofill 3 PRO: Fully Automatic Pressurisation

The Mikrofill 3 PRO is a fully automatic, WRAS-approved sealed system filling device that manages system pressure with minimal maintenance. It delivers a maximum inlet pressure of 9.0 bar and a maximum cold fill pressure of 8.7 bar, alongside patent-pending smart fault logic that identifies faults faster and improves system uptime. Measured fill volume, leak detection, and MODBUS RTU connectivity give installers and building management systems a clear, accurate picture of system performance, while the unit's IP55 rating and compact wall-mountable design suit a wide range of plant room environments.

2 x 500 Litre MikroPro Expansion Vessels

The two 500 litre MikroPro expansion vessels included in this bundle are floor-standing and rated to a maximum operating pressure of 6 bar each, with a maximum operating temperature of 70°C. Constructed with a carbon steel shell and connections, a synthetic rubber compound diaphragm, and a durable powder epoxy coating, each vessel complies with the Pressure Equipment Directive (PED) 97/23/EC and carries CE certification. Splitting the 1000 litre requirement across two smaller vessels can suit installations where floor space, doorway access, or plant room layout make a single larger vessel impractical.

Why Choose the Bundle

Selecting the Mikrofill 3 PRO with two 500 litre MikroPro expansion vessels removes the guesswork from vessel sizing and ensures full compatibility between the pressurisation unit and expansion vessels from a single, trusted manufacturer. The bundle extends the Mikrofill 3 PRO's standard warranty from 2 years to 4 years, and units purchased as a package are factory pre-commissioned and supplied with a service valve, reducing on-site commissioning time.

Bundle Benefits

• Increased warranty on the Mikrofill 3 PRO, from 2 years to 4 years, when purchased with this vessel package
• Factory pre-commissioned units to reduce on-site installation and commissioning time
• Supplied with a service valve as standard
• 2 x 500 litre vessels (1000 litres combined capacity), floor-standing, suited to installations with restricted space for a single larger vessel
• Single-source compatibility between pressurisation unit and expansion vessels

Technical Specifications

Mikrofill 3 PRO

2 x 500 Litre MikroPro Expansion Vessels

Applications

• Complete pressurisation and expansion solution for domestic and commercial sealed heating systems
• Complete pressurisation and expansion solution for chilled water systems, refrigeration units, and industrial cooling systems
• Central heating, chilled water, and closed-loop HVAC installations sized for 1000 litre total expansion capacity, split across 2 x 500 litre vessels
• Installations where restricted floor space, doorway access, or plant room layout rule out a single larger vessel
• Projects requiring factory pre-commissioned, warranty-extended equipment to reduce site commissioning time

Summary

The Mikrofill 3 PRO with 2 x 500 litre MikroPro expansion vessel bundle brings together an advanced, WRAS-approved pressurisation unit with two floor-standing expansion vessels, each rated to 6 bar, providing 1000 litres of combined expansion capacity. Factory pre-commissioned, supplied with a service valve, and backed by an extended 4-year warranty on the Mikrofill 3 PRO, this bundle offers a straightforward, single-source solution for specifying pressurisation equipment on domestic and commercial heating and cooling projects where two smaller vessels suit the installation better than one larger vessel.
