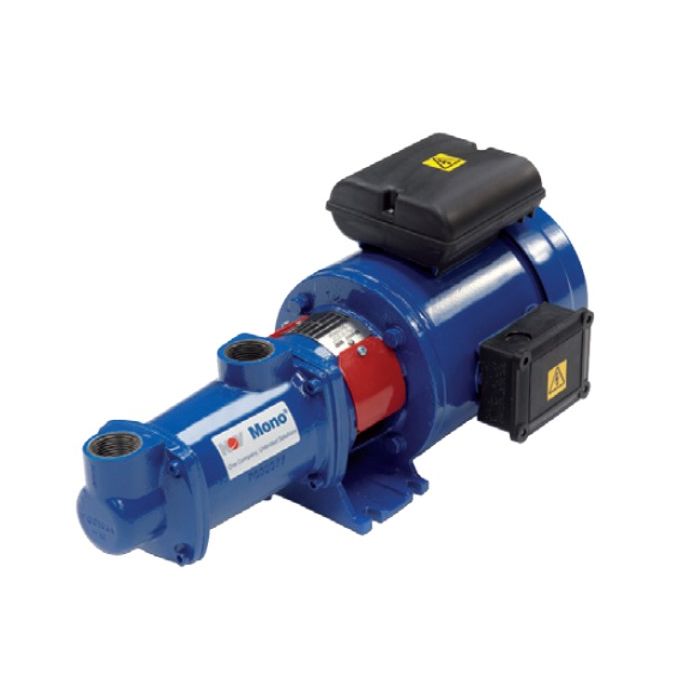

Mono CMM 263 Self Priming Pump - 415v

Part Number:
MO-CMM263
This item is now obsolete. Please view our alternatives below.
£957.60 RRP £570.00 £475.00
Out of stock

Free Delivery Over £50

Mono MM pump, 415v. The Mono M-range pumps are small and compact being specifically designed for a wide range of domestic & light industrial applications including cellar drainage, the emptying of septic tanks and the transfer of diesel, water-based inks, vegetable oils &... Read More
1 year warranty With This Product

A helical rotor self-priming pump suitable for drainage irrigation and water supply from wells and rivers.

Can also be used for pumping diesel and oils. Fully self-priming the Mono M range pump achieves suction lifts up to 26ft (8m) this means that it can be mounted accessibly and well clear of the liquid level.

Compact design

In this sense Mono ‘M’ means ‘mini’. The largest model in the range occupies little more than half a cubic foot of space, and requires less than half as much again for in-situ dismantling and maintenance.

Pumping principle

A helical rotor revolves eccentrically within a resilient double helix stator of twice the pitch. The rotor turning within the stator forms cavities which progress uniformly from suction to discharge, carrying the material with them.

Reliable performance

The Mono M range will satisfy the toughest duties. Just like the larger industrial pumps that have a long record of success in all sorts of demanding duties, the M range can handle viscous liquids and random solids. It features an abrasion and chemical resistant stator, a precision-engineered stainless steel rotor, a mechanically sealed drive shaft and a close-grained cast iron pump housing.

Easy maintenance

Space isn’t the only economy with the Mono M range. Being simply designed and easily dismantled, maintenance work is minimal, requiring no special skills or tools.

Positive pumping action

To ensure steady output pressure and non-pulsing flow with minimal slippage, the pump operates on the progressing cavity pumping principle. A very useful feature when pumping heating oil to burner nozzles, for example.

Self-priming

Fully self-priming, the Mono M range achieves suction lifts up to 26ft (8m). This means that it can be mounted accessibly and well clear of the liquid level.

Smooth, silent running

The pump’s smooth action and resilient rubber stator ensure quiet running - a very desirable feature for domestic installations.

More Information
Price £475.00
Manufacturer Mono
Warranty 1 year warranty
Electrical supply 415V
AC Power Three Phase
Flow Rate 26.5 Ltr/min
Switch None
Duty Type Domestic
Submersible vs Surface Mounted Surface Mounted
Pump Type Self-Priming
Next Day Delivery No
Connection Size 1 inch
