Grundfos NKE 100-200/219AA2F2AESBQQENW3 Long Coupled Single Stage End Suction Pump - 400v - Three Phase - 286 Ltr/min
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
NKE 100-200/219 AA2F2AESBQQENW3

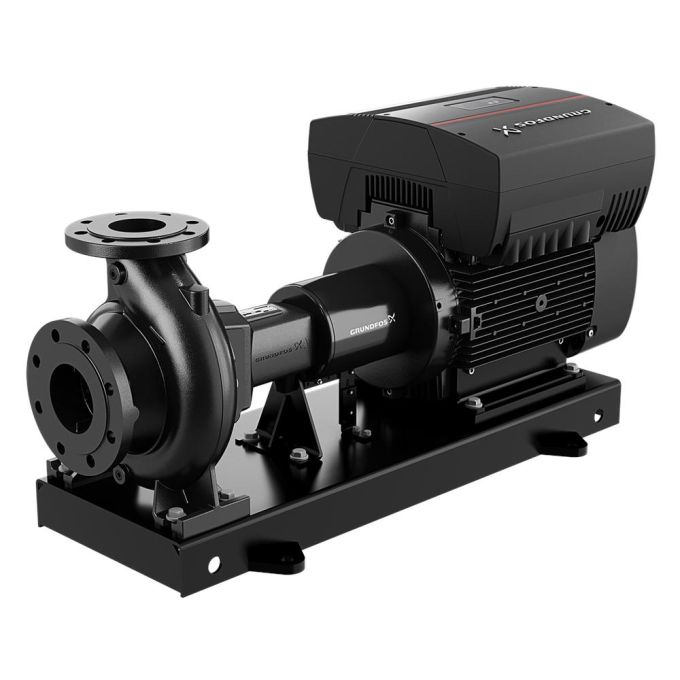

Non-self-priming, single-stage, centrifugal pump designed according to ISO 5199 with dimensions and rated performance according to EN 733. Flanges are PN 16 with dimensions according to EN 1092-2. The pump has an axial suction port, a radial discharge port and horizontal shaft. It is of the back pull-out design enabling removal of the coupling, bearing bracket and impeller without disturbing the motor, pump housing or pipework. The unbalanced rubber bellows seal is according to DIN EN 12756. The pump is fitted with a foot-mounted, fan-cooled asynchronous motor. Pump and motor are mounted on a common base frame. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.
| Price | £9,671.90 |
|---|---|
| Manufacturer | Grundfos |
| Warranty | 1 year warranty |
| Electrical supply | 400V |
| AC Power | Three Phase |
| Flow Rate | 286 Ltr/min |
| Max Head | 13.69 m |
| Water type | Clean or Discoloured |
| Pump Type | End Suction Pump |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Surface Mounted |
| Inlet Connection | DN 125 |
| Outlet Connection | DN 100 |
| Next Day Delivery | No |
| Manufacturers Part Number | 98122879 |
