This item is now obsolete. Please view our alternatives below.
1 year warranty With This Product

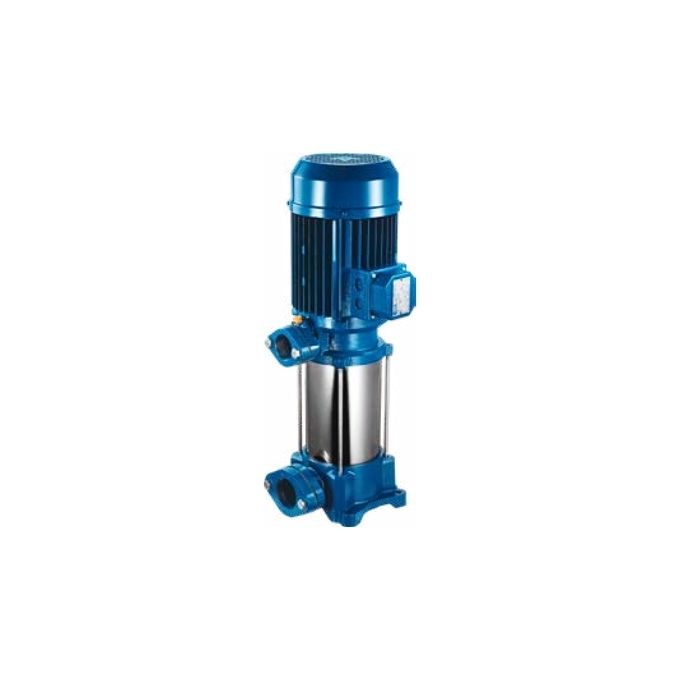

The U7SV-300/6T is a three-phase, six-stage multistage vertical pump from the ULTRA SV series, built in stainless steel and cast iron for the transfer and pressurisation of clean, non-loaded fluids. With overlapped-port vertical construction, it is suited to residential and commercial pressurisation systems, irrigation, drinking and glycol water supply, water treatment, food industry processes, heating and air conditioning circuits, and washing systems.
The Pentax ULTRA SV/SL/SLX range is a series of stainless steel multistage vertical pumps engineered for the transfer and pressurisation of clean, non-loaded fluids. Available across three body configurations and five hydraulic sizes, the range is built for a wide span of applications, including domestic and commercial pressurisation systems, irrigation, drinking and glycol water supply, water treatment, food industry processes, heating and air conditioning circuits, and washing systems. The construction combines a robust cast iron or stainless steel body with AISI 304 stainless steel wetted components, providing reliable performance across variable flow and pressure demands.
Key Features
SV Configuration
The pump uses a vertical axis, overlapped-port cast iron body, with stainless steel AISI 304 impellers, diffusers, outer shell, and motor shaft, providing corrosion resistance in the wetted flow path while maintaining a robust cast iron housing.
Six-Stage Multistage Design
Fitted with six impellers, the U7SV-300/6T delivers a head of up to 70.6 m at zero flow, tapering to 39.3 m at 9.6 m³/h, suited to applications requiring moderate to high pressure boost across a working flow range.
Reliable Sealing and Bearings
The pump is fitted with a ceramic-graphite-EPDM mechanical seal as standard, with a silicon carbide/silicon carbide option available. Bearings are rated 6203-ZZ and 6304-ZZ C3, supporting continuous duty operation.
Wide Temperature Tolerance
Liquid temperature range extends from +5°C to +90°C, with a maximum ambient operating temperature of 40°C, allowing use across both cold water and heated fluid applications.
Three-Phase Motor
Powered by a 2-pole, three-phase induction motor rated 2.2 kW (3 HP) at 400V-50Hz, drawing 4.8 A. The motor carries Insulation Class F and a protection degree of IPX4.
Variable Speed Drive Compatible
The U7SV-300/6T can be supplied as a pressure-controlled booster package with EPIC or IPFC variable speed drives (EPIC-A 306, IPFC 114, or IPFC 306 power supply options), maintaining constant set pressure under variable flow demand. A downstream membrane tank is required for this configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | U7SV-300/6T |
| Version | SV — vertical axis, overlapped ports |
| Number of impellers | 6 |
| Power (P2) | 3 HP / 2.2 kW |
| Power input (P1) | 2.5 kW |
| Power supply | 3~400V-50Hz |
| Current | 4.8 A |
| Max head | 70.6 m (at 0 m³/h) |
| Flow range | 0–9.6 m³/h |
| Pump body | Cast iron |
| Impellers, diffusers, shell, motor shaft | Stainless steel AISI 304 |
| Mechanical seal | Ceramic-graphite-EPDM (standard); SiC/SiC (optional) |
| Pump body gasket | EPDM |
| Bearings | 6203-ZZ / 6304-ZZ C3 |
| Liquid temperature range | +5°C to +90°C |
| Ambient temperature (max) | 40°C |
| Max operating pressure | 8 bar |
| Insulation class | F |
| Protection degree | IPX4 |
| Suction port (DNA) | 1″¼ G |
| Discharge port (DNM) | 1″¼ G |
| Overall height (C) | 497 mm |
| Weight | 26 kg |
| Optional variable speed drives | EPIC, IPFC (EPIC-A 306 / IPFC 114 / IPFC 306) |
Applications
- Residential and commercial water pressurisation
- Irrigation systems
- Drinking and glycol water supply
- Water treatment processes
- Food industry fluid handling
- Heating and air conditioning circuits
- Washing systems
Summary
The U7SV-300/6T is a six-stage, three-phase multistage vertical pump combining a cast iron overlapped-port body with stainless steel AISI 304 hydraulics, delivering up to 70.6 m of head across a flow range of 0–9.6 m³/h. Its wide liquid temperature tolerance, IPX4 protection, and compatibility with EPIC and IPFC variable speed drives make it a versatile choice for pressurisation and fluid transfer applications requiring moderate to high head at low to medium flow.
