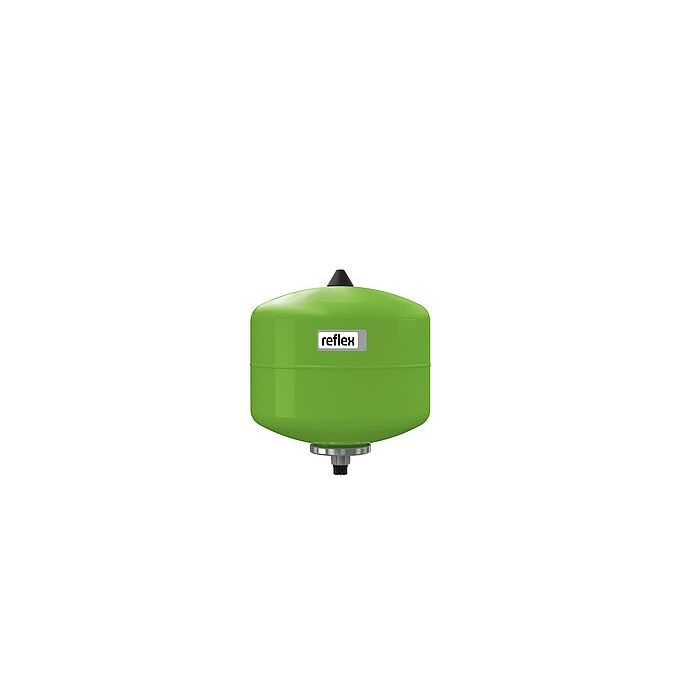

Reflex DD 12 Flow Through Expansion Vessel - 12 Litre
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
Reflex Refix DD 12 Flowed through diaphragm expansion tank for DHW systems, water supply installations and pressure-boosting systems. With diaphragm according to the elastomer directive and W 270. Exterior and interior coating in compliance with KTW-A. Only suitable for cold water systems. The flow is implemented using a high-flow circulation star and the enclosed 3/4” T-piece
Vessels fitted according to DIN EN 13831. Checked according to DIN 4807 part 5. Vessels with a permissible operating pressure of 10/16 bar with DIN DVGW Reg. no. NW-0411AT2534. Approval according to Pressure Equipment Directive 2014/68/EU
- Circulation with high-flow circulation star
- Parts in contact with water are corrosion-protected
- Non-replaceable bladder according to DIN EN 13831 DIN 4807 T5, KTW-C and W270
- Interior and exterior coating in compliance with KTW-A
- May be combined with the Flowjet—flow through valve
- 33 litres with brackets
- Only for use in cold water pipes (consider installation and operating instructions)
Type: DD 12
Colour: green
Diaphragm material: butyl
Nominal volume: 12 l
Max. useful volume: 9 l
Max. permissible system temperature: 70 °C
Min. perm. operating temperature : -10 °C
Max. perm. operating temperature: 70 °C
Max. perm. operating pressure: 10 bar
Factory provided gas supply pressure: 4 bar
Connection: G 3/4"
Diameter: 280 mm
Height: 318 mm
Tilt dimension approx.: 424 mm
Weight: 2.20 kg
| Price | £178.65 |
|---|---|
| Manufacturer | Reflex |
| Warranty | 1 year warranty |
| Capacity | 12Ltr |
| Water type | Clean or Discoloured |
| Pump Type | Expansion Vessel |
| Layout | Vertical |
| Diameter | 280mm |
| Height | 318mm |
| Next Day Delivery | Yes |
| Manufacturers Part Number | 7308200 |
