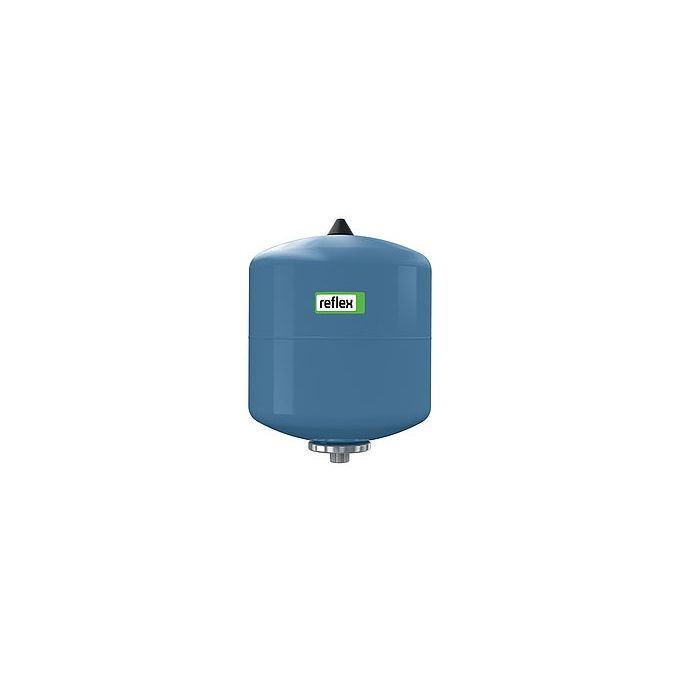

Reflex Refix DE 8 Diaphragm Expansion Vessel - 8 Litre

Part Number:
7301000
This item is now obsolete. Please view our alternatives below.
£39.35 £32.79
Refix DE Non-flowed through diaphragm expansion tank for water supply installations that are not subject to DIN 1988, e.g. fire extinguishing and service water systems, underfloor heating or heat source installations. Vessels fitted according to DIN EN 13831. Approval according... Read More
1 year warranty With This Product

Refix DE Non-flowed through diaphragm expansion tank for water supply installations that are not subject to DIN 1988, e.g. fire extinguishing and service water systems, underfloor heating or heat source installations. Vessels fitted according to DIN EN 13831. Approval according to Pressure Equipment Directive 2014/68/EC.

  • Bladder according to DIN EN 13831 / replaceable from 50 litres
  • For antifreeze additive of at least 25 – 50 %
  • Parts in contact with water are corrosion-protected
  • Durable epoxy resin coating
  • 33 litres with brackets, from 50 litres with adjustable feets
  • following types incl. pressure gauge:
    → 10/16 bar: from Ø 1.000 mm
    → 25 bar: from Ø 450 mm
  • Pressure gauge and supply pressure valve protected by clip

Note:
No licence requirement according to SWKI HE301-01 and SVTI for (PSV * VN ≤ 3,000 bar * litre). Type: DE 8
Colour: blue
Diaphragm material: butyl
Nominal volume: 8 l
Max. useful volume: 6 l
Max. permissible system temperature: 70 °C
Min. perm. operating temperature : -10 °C
Max. perm. operating temperature: 70 °C
Max. perm. operating pressure: 10 bar
Factory provided gas supply pressure: 4 bar
Connection: G 3/4"
Diameter: 206 mm
Height: 332 mm
Tilt dimension approx.: 391 mm
Weight: 1.80 kg

More Information
Price £32.79
Manufacturer Reflex
Warranty 1 year warranty
Capacity 8Ltr
Water type Clean or Discoloured
Pump Type End Suction Pump
Next Day Delivery No
Manufacturers Part Number 7301000
