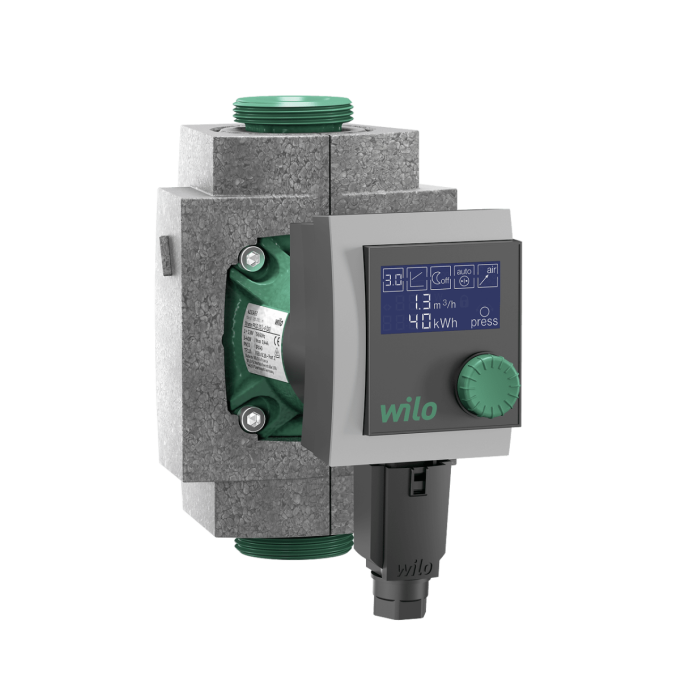

Wilo Stratos-Pico-15/1-4-(ROW) Glandless Circulator Pump - 230v - Single Phase - 51 Ltr/min

Part Number:
4216610
This item is now obsolete. Please view our alternatives below.
Now Obsolete - See Replacement Below

Free Delivery Over £50

WILO Stratos PICO, electronically controlled high efficiency pump Maintenance-free glandless circulation pump with screwed connection, blocking-current proof synchronous motor using ECM technology (up to 90% energy saving compared to an uncontrolled pump) and built-in... Read More
1 year warranty With This Product

WILO Stratos PICO, electronically controlled high efficiency pump

Maintenance-free glandless circulation pump with screwed connection, blocking-current proof synchronous motor using ECM technology (up to 90% energy saving compared to an uncontrolled pump) and built-in electronic power control for variable differential pressure control. Can be used for all HVAC applications (+2 °C to +110°C). Control mode can be selected in accordance with the radiator/underfloor heating application.



Standard-equipped with:

  • Preselectable control modes for optimum load adjustment: Δp-c (differential pressure constant), Δp-v (differential pressure variable) can be combined with Dynamic Adapt control function
  • Automatic setback operation
  • Integrated motor protection
  • Operating and fault display (with error codes)
  • LC display with precise menu navigation
  • Display of the instantaneous power in Watts, or
  • display of the current flow in m³/h
  • Display of the cumulative power consumption in kilowatt-hours
  • Reset function for resetting the electricity meter or for resetting the settings to the factory settings
  • "Hold" function (key lock) for disabling the settings
  • Minimal consumption only 3 W
  • High efficiency, TÜV tested (the certificate can be seen at www.wilo.com/legal)
  • Compact design
  • Automatic deblocking function
  • High starting torque
  • Venting routine for automatic venting of the rotor chamber
  • Equipped as standard with a thermal insulation shell
More Information
Price £229.20
Manufacturer Wilo
Warranty 1 year warranty
Bars 10 bar
Electrical supply 230V
AC Power Single Phase
Flow Rate 51 Ltr/min
Pump Type Circulating Pump
Duty Type Commercial
Submersible vs Surface Mounted Surface Mounted
Inlet Connection G 1
Outlet Connection G 1
Next Day Delivery No
Port To Port 130mm
Manufacturers Part Number 4216610
