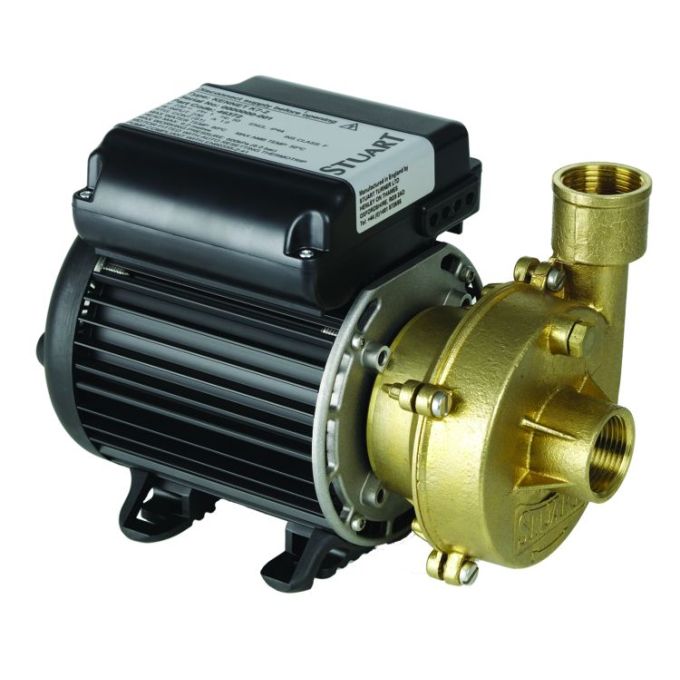

Stuart Turner CH 12-14 Brass Centrifugal Pump - 230v
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
Stuart Turner CH single range is suitable for commercial or domestic use, pumping hot or cold water.
The CH range of centrifugal pumps feature horizontal suction and vertical delivery connections and are designed for high flow applications requiring continuous operation. Designed for liquid transfer, pressure boosting or distribution of clean, fresh water. Other clean, non aggressive, non explosive liquids with similar characteristics to water may be pumped
Stuart Turner Single Stage Pump
- Robust design
- Quiet operation
- Continuous (S1) duty rating
- IP44 enclosure protection
Technical Specification
The Pump
- Maximum head: 14.2 metres
- Maximum working pressure: 6 bar
- Maximum flow: 210 L/min
- Length: 277mm
- Width: 131mm
- Height (excluding hoses): 170mm
The Motor
- Power Supply: 230/1/50
- Enclosure protection: IP44
- Motor: Induction, auto-reset thermal tip
- Power consumption: 595 Watts
- Full load: 2.8 Amps
- Fuse rating: 5 Amps
- Rating: Continuous (S1)
- Gross weight (packed): 7.6 Kg
| Price | £303.80 |
|---|---|
| Manufacturer | Stuart Turner |
| Warranty | 1 year warranty |
| Dimensions | L227 x W131 x H170mm |
| Bars | 6 bar |
| Impeller Type | Single |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Flow Rate | 210 Ltr/min |
| Max Head | 14.2m |
| Water type | Clean or Discoloured |
| Switch | None |
| Duty Type | Domestic |
| Submersible vs Surface Mounted | Surface Mounted |
| Pump Type | Self-Priming |
| Next Day Delivery | Yes |
| Manufacturers Part Number | 46379 |
