Stuart Turner CH 4-40 PS Centrifugal Pressure Set

Part Number:
46602
This item is now obsolete. Please view our alternatives below.
£1,587.60 RRP £1,111.32 £926.10
In stock Hurry! Last Few Remaining

Free Delivery Over £50

Next Day Delivery Available

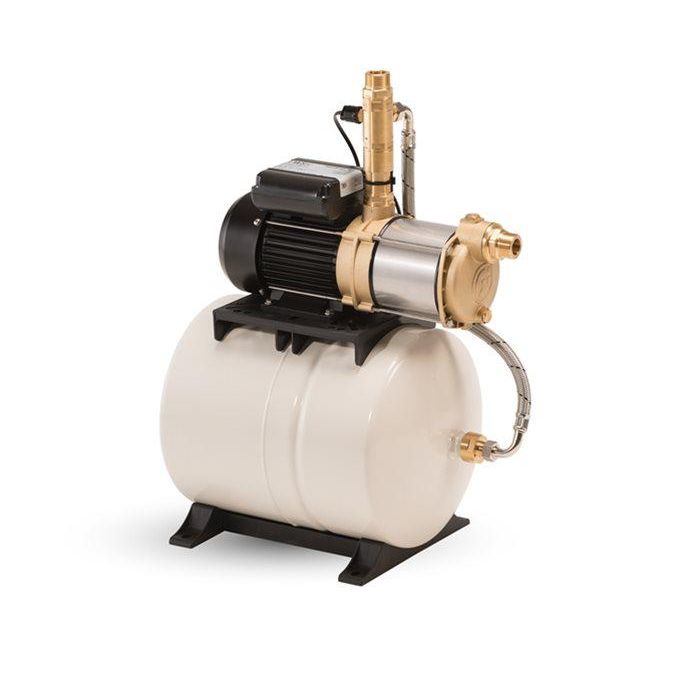

Designed to meet system demands in larger domestic and light commercial applications. The CH multistage pump is mounted on to a WRAS Approved 24 litre diaphragm tank providing a buffer of pressurised stored water.
1 year warranty With This Product

Designed to meet system demands in larger domestic and light commercial applications. The CH multistage pump is mounted on to a WRAS Approved 24 litre diaphragm tank providing a buffer of pressurised stored water.

CH Pressure sets are ideally suited to boosting stored cold water supplies to un-vented hot water cylinders/combination boilers. Supplied with G 1 flexible hoses and adaptors.

  • Flow rates up to 141 litres per minute and heads up to 37 metres
  • Fully automatic control
  • No pulsing during operation
  • Durable brass and stainless steel construction
  • Multistage centrifugal pump
  • Extended life mechanical seal
  • Quiet operation
  • WRAS Approved Product
  • Continuously rated induction motor
  • Dry run protection
  • Includes 24 litre WRAS Approved diaphragm tank
  • G 1 Flexible hoses included
  • 2 year guarantee
Performance
Maximum head - closed valve 37 metres
Performance @ 50 l/min 34 metres
Performance @ 100 l/min 20 metres
Maximum flow (l/min) 141 l/min
Minimum static inlet pressure 1 metre
Maximum static inlet pressure 10 metres
Maximum static outlet pressure 13 metres
Maximum working pressure* 600 kPa / 6 bar
Maximum ambient air temperature 40 °C
Min / Max water temperature Min 4 °C / Max 35 °C
Cut out flow 1 l/min (approx)
Cut in pressure 190 kPa / 1.9 bar
Pressure vessel air pre-charge 1.8 bar / 26.1 psi
More Information
Price £926.10
Manufacturer Stuart Turner
Warranty 1 year warranty
Dimensions L521 x W280 x H647mm
Electrical supply 230V
AC Power Single Phase
Cable length 1.5m
Flow Rate 141 Ltr/min
Max Head 37m
Water type Clean or Discoloured
Duty Type Domestic
Pump Type Centrifugal Pump
Next Day Delivery Yes
Connection Size 1 inch
Manufacturers Part Number 46602
