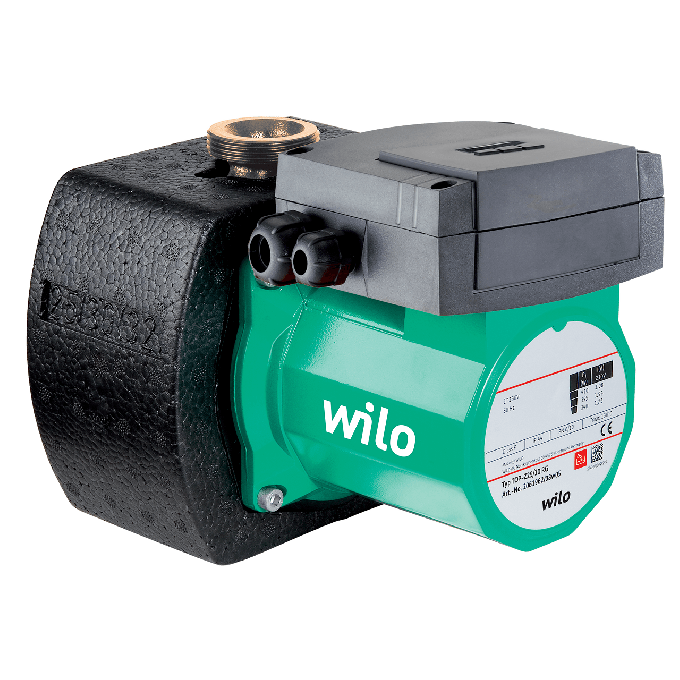

Wilo TOP-Z30/10 DM PN16 RG Domestic Hot Water Circulator - 400v - Three Phase - 158 Ltr/min
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
This circulator is suitable only for drinking water.
Can be used for domestic hot water circulation systems in the industry and building services.
Glandless circulator with threaded or flange connection, preselectable speed stages for power adjustment.
Equipment and function
- Manual power adjustment with 3 speed stages
- Pumps with 1~ motor:
- P2 up to 90 W: internal protection against unacceptably high winding temperatures
- P2 ≥ 180 W: Full motor protection with thermal winding contacts in conjunction with tripping unit (optional: SK 602N/SK 622N)
- Pumps with 3~ motor:
- P2 up to 90 W: internal protection against unacceptably high winding temperatures
- P2 ≥ 180 W: Full motor protection with thermal winding contacts in conjunction with tripping unit (optional: SK 602N/SK 622N)
- Mains connection 3~, 230 V with optional switching plug
- Pump housing in red brass or grey cast iron (stainless steel depending on type)
- PN 6/PN 10 combination flange (for DN 40 to DN 65)
- Thermal insulation shells
| Price | £1,775.80 |
|---|---|
| Manufacturer | Wilo |
| Warranty | 1 year warranty |
| Bars | 16 bar |
| Electrical supply | 400V |
| AC Power | Three Phase |
| Flow Rate | 158 Ltr/min |
| Max Head | 9.3m |
| Water type | Clean or Discoloured |
| Pump Type | Circulating Pump |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Surface Mounted |
| Inlet Connection | G 2 |
| Outlet Connection | G 2 |
| Next Day Delivery | No |
| Port To Port | 180mm |
| Manufacturers Part Number | 2175513 |
