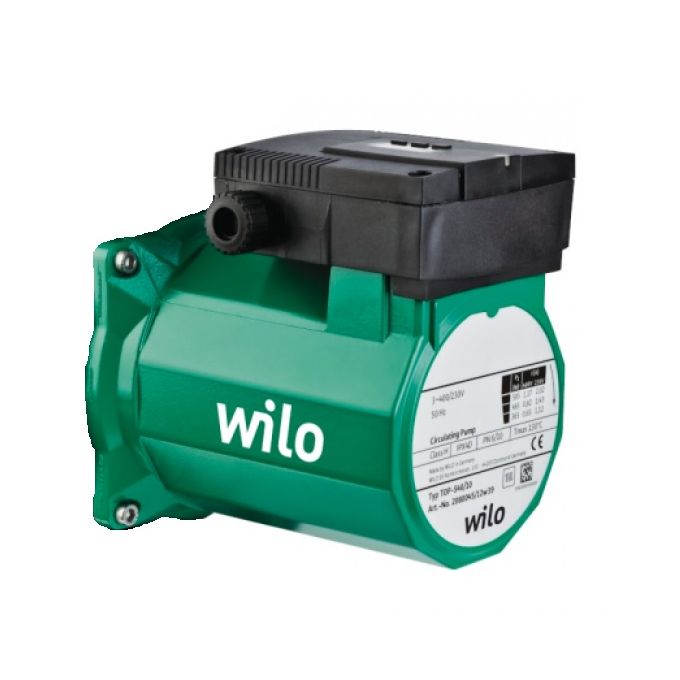

Wilo TOP-S 50/4 Replacement Head - 230v - Single Phase

Part Number:
2046668
This item is now obsolete. Please view our alternatives below.
£1,855.20 RRP £1,224.43 £1,020.36

Free Delivery Over £50

Replacement unit to repair a Wilo Top-S or Top-SD pump. The unit replaces the motor and terminal box on the existing pump base. Replacement body O-ring included. Existing bolts should be reused to reassemble the unit.
1 year warranty With This Product

Please ensure Top-S replacement head is suitable for your model of pump. Replacement heads cannot be returned if they have been attempted to be fitted. If unsure please contact 0800 008 6405.

Can be used for hot-water heating systems of all kinds, industrial circulation systems, air-conditioning systems and closed cooling circuits.

Maintenance-free glandless circulation pump with threaded or flange connection, pre-selectable speed stages for power adjustment.

Includes:

  • Pump
  • Thermal insulation
  • Including seals for threaded connection
  • Washers for flange screws (for nominal connection diameters DN 40 - DN 65)
  • Installation and operating instructions

Benefits:

  • Direction of rotation signal lamp for displaying the correct sense of rotation (only with 3~)
  • Manual power adjustment with 3 speed stages
  • Pump housing with cataphoretic coating (KTL) protects against corrosion due to condensation formation

Technical data

  • Permitted temperature range -20 °C to +130 °C, for short periods (2 h) to +140 °C (TOP-S 25/13, 80/15, 80/20: -20 °C to +110 °C)
  • Mains connection:
    • 1~230 V, 50 Hz (depending on type)
    • 3~230 V, 50 Hz (with optional switching plug)
    • 3~400 V, 50 Hz
  • Protection class IP X4D
  • Screwed connection or flange connection (depending on type) Rp 1 to DN 100
  • Max. operating pressure of standard version: 6/10 bar or 6 bar (special version: 10 bar)

Materials

  • Pump housing: Grey cast iron
  • Impeller: Plastic
  • Shaft: stainless steel
  • Bearing: Carbon, metal impregnated

Construction:

Glandless circulation pump with screwed connection or flange connection.

Application

Hot-water heating systems of all kinds, industrial circulation systems, air-conditioning systems and closed cooling circuits

Equipment/function

Operating modes

  •  Speed-stage switching



Manual functions

  • Setting the speed stages: 3 speed stages (2 speed stages for 1~ pumps with P2 ≥ 350 W)



Automatic functions

  • Internal protection against non-approved high winding temperatures (only for pumps for which P2 ≤180 W)



Signal and display functions

  • Thermal winding contact (WSK, potential-free NC contact) only for pumps for which P2 ≥180 W) for full motor protection in all speed levels with optional tripping unit SK 602N/SK 622N
  • Direction of rotation control light (only for 3~pumps )
  • Display of selected speed stage



Dual pump management (twin-head pump or 2 x single pumps)

  • Main/standby operation or parallel operation (for automatic fault-actuated switchover/time-dependent pump cycling, a corresponding switchgear must be provided on-site)



Equipment

  • For flange-end pumps: Flange versions
    • Standard version for DN 40 to DN 65 pumps: PN 6/10 combination flange (PN 16 flange according to EN 1092-2) for PN 6 and PN 16 counter flanges,
    • Standard version for DN 80/DN 100 pumps: PN 6 flange (designed for PN 16 according to EN 1092-2) for PN 6 counter flange
  • Cable inlet possible from both sides (only for 1~pumps and 3~pumps with P2≥180 W)
  • Thermal insulation as standard for heating applications

Type key

Example:

TOP‐S 40/10

TOP-S

Standard pump (screw-end pump or flange-end pump)

40/

Nominal connection diameter

10

Nominal delivery head [m] at Q = 0 m3/ h

More Information
Price £1,020.36
Manufacturer Wilo
Warranty 1 year warranty
Dimensions L273 x H244 x W234mm
Bars 10 bar
Impeller Type Single
Electrical supply 230V
AC Power Single Phase
Switch None
Duty Type Commercial
Pump Type Replacement Pump Head
Next Day Delivery No
Connection Size N/A
Connection Type N/A
Manufacturers Part Number 29991422
