Trebles Run-Around-Coil Package - 5303-EC-XL-40-180F - Standard

Part Number:
5303-EC-XL-40-180F
This item is now obsolete. Please view our alternatives below.
£6,469.80 RRP £6,763.20 £5,636.00

Free Delivery Over £50

3 week lead time

Trebles RAC pump packages are a prefabricated solution for use in sealed cooling systems in conjunction with air handling units. Incorporating a circulation pump, pressure vessel, low pressure switch, safety valve and other associated ancillaries all housed within a Galvanised... Read More
1 year warranty With This Product

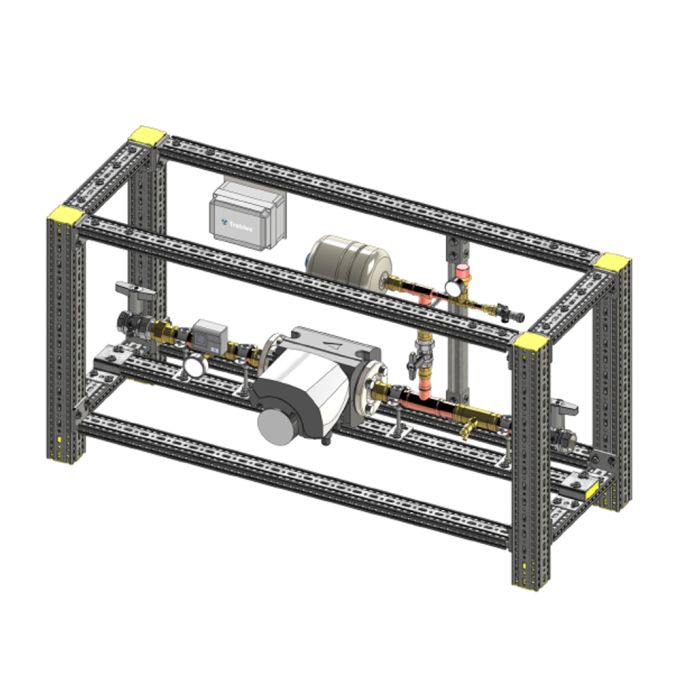

Trebles RAC pump packages are a prefabricated solution for use in sealed cooling systems in conjunction with air handling units. Incorporating a circulation pump, pressure vessel, low pressure switch, safety valve and other associated ancillaries all housed within a Galvanised Steel frame, a Trebles RAC unit can greatly reduce time spent on site during installation.


The pump is controlled via a 0-10V signal from the air handling unit to ensure perfect synchronisation and features built in dry run protection and a automatic air purge function. The RAC pump package also includes a control box, pre-wired for 0-10V signal input, remote start/stop, pump alarm and a low pressure switch. Once installed, a RAC unit can be left unattended for prolonged periods of time with minimal maintenance.


When plant room space is at a premium, the enclosed option facilitates external installation, protecting
the equipment with a Marine Grade Aluminium enclosure that is easily removable for future service &
maintenance.

Features & Benefits:

  • High Efficiency Circulator
  • Single Pump
  • 4L Pressure Vessel
  • Safety Relief Valve
  • Low Pressure Switch
  • Pressure Gauge
  • 0-10V Signal Operation
  • Dry Run Protection
  • Auto Air Purge
  • Free Standing
  • Weartherproof Option
  • 2 Year Guarantee
More Information
Price £5,636.00
Manufacturer Trebles
Warranty 1 year warranty
Electrical supply 230V
AC Power Single Phase
Pressure Rating 10 Bar
Water type Clean or Discoloured
Pump Type Run Around Coil Package
Duty Type Commercial
Inlet Connection 1-1/2” Female BSP
Outlet Connection 1-1/2” Female BSP
Next Day Delivery No
Manufacturers Part Number 5303-EC-XL-40-180F
