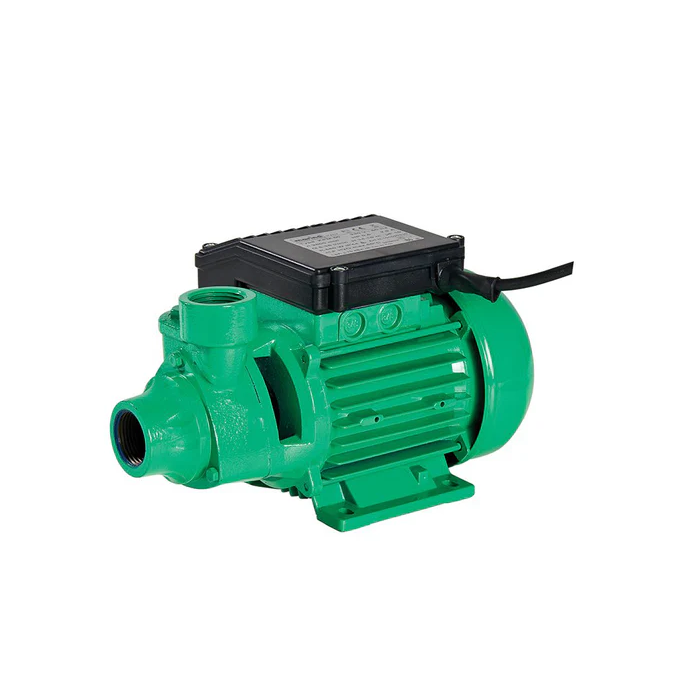

Tsurumi KPM80 Centrifugal Pump - 230v - Single Phase
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
The Tsurumi KPM80 Centrifugal Pump (SKU 19-15-1080) is a robust and efficient peripheral pump designed for industrial and domestic applications requiring high pressure with relatively low power consumption. This single-phase, 230V model is part of Tsurumi's KP(M) series of industrial peripheral pumps, renowned for their steady operating curves and reliability.
Key Specifications
Performance
- Flow rate: 50 litres per minute
- Maximum head: 55 metres
- Power: 0.60 kW
Dimensions and Weight
- Inlet/Outlet: 1" (BSPF)
- Width: 135 mm
- Length: 295 mm
- Height: 161 mm
- Dry weight: 9.5 kg
Electrical
- Voltage: 230V
- Frequency: 50 Hz (assumed based on standard European specifications)
Applications
The KPM80 is suitable for various applications, including:
- Increasing system pressure in aqueducts
- Automatic water distribution in small autoclave tanks
- Domestic water pressure boosting
- Industrial processes requiring consistent high-pressure
Operating Conditions
- Liquid temperature: Up to 60°C
- Ambient temperature: Up to 40°C
- Total suction lift: Up to 7 metres
- Duty cycle: Continuous
Construction
The pump is built with durability in mind, featuring:
- Cast iron pump body
- Brass impeller
- Stainless steel shaft
- Ceramic/graphite mechanical seal
This construction ensures the pump can handle clean water and non-aggressive liquids without sand or other solid impurities.
| Price | £104.52 |
|---|---|
| Manufacturer | Tsurumi |
| Warranty | 1 year warranty |
| Dimensions | 16.1 cm H x 13.5 cm W x 29.5 cm D |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Flow Rate | 50 Ltr/min |
| Max Head | 55m |
| Water type | Clean or Discoloured |
| Duty Type | Commercial |
| Pump Type | Centrifugal Pump |
| Next Day Delivery | No |
| Manufacturers Part Number | 19-15-1080 |
