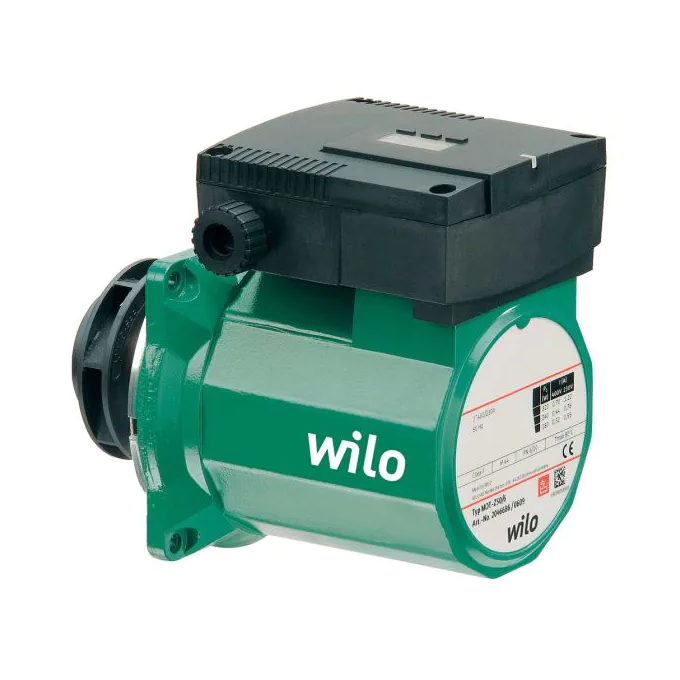

Wilo Top-Z 50/7 DM GG/RG RMOT Replacement Head
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
The Wilo Top-Z 50/7 DM GG/RG RMOT Replacement Head (SKU 2176069) is a high-performance spare motor designed specifically for domestic hot water circulation pumps in the Wilo TOP-Z series. This replacement head ensures optimal functionality and efficiency, making it an essential component for maintaining your heating system.
Key Features
- Power Specifications: The replacement head operates on a mains connection of 3~400 V and 50 Hz, with a nominal power consumption of 350 W and a maximum power absorption of 680 W. It supports a minimum rated current of 0.7 A and can handle up to 2.4 A per pump.
- Speed Range: The motor delivers a variable speed range, operating between a minimum of 2000 rpm and a maximum of 2700 rpm, allowing for efficient adaptation to varying load conditions.
- Protection and Durability: With an IPX4D protection class and H insulation class, this unit is designed to withstand challenging conditions while ensuring safety and longevity in operation.
- Compact Design: The dimensions of the motor are optimised for easy installation, with a length of 430 mm, width of 230 mm, and height of 290 mm. The unit weighs approximately 7.2 kg (net) and comes packaged in a sturdy cardboard box for transport.
- Included Accessories: The product includes an accessories kit featuring an O-ring and four motor fastening screws, along with comprehensive installation and operating instructions to facilitate a smooth replacement process.
Applications
The Wilo Top-Z RMOT Replacement Head is ideal for use in various domestic hot water circulation applications, ensuring reliable performance in both residential and light commercial settings. Its design allows for easy integration into existing systems, making it a preferred choice for maintenance and upgrades.
| Price | £2,508.35 |
|---|---|
| Manufacturer | Wilo |
| Warranty | 1 year warranty |
| Pump Type | Replacement Pump Head |
| Next Day Delivery | Yes |
| Manufacturers Part Number | 2176069 |
