Wilo Veroline IPL 40/120-1.5/2 Centrifugal Pump - 1.50 kW

Zoom

Click on image to zoom

More Images

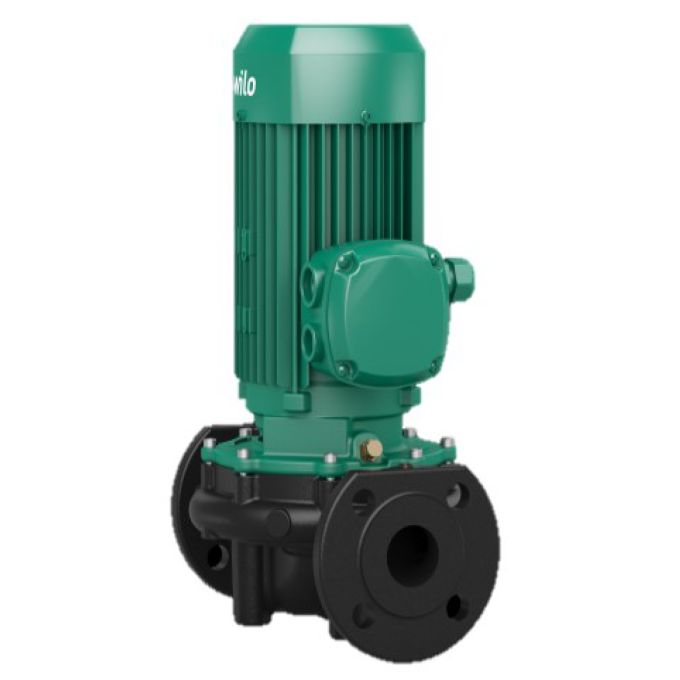

Wilo Veroline IPL 40/120-1.5/2 Centrifugal Pump - 1.50 kW
Single-stage, low-pressure centrifugal pump in in-line design with mechanical seal, flange connection with pressure measuring connection R 1/8 and motor...
Single-stage, low-pressure centrifugal pump in in-line design with mechanical seal, flange connection with pressure measuring connection R 1/8 and motor with one-piece shaft.
Read more
Part Number: WIL-2121201

Share this product

£1,116.00 RRP

£558.00 [Ex. VAT]
Including VAT £669.60
OR
FREE DELIVERY
*on orders over £50
1 year guarantee
EUP Ready
Description

Product Details

The Veroline IPL Centrifugal Pumps are a range of single-stage, low-pressure centrifugal pump in in-line design with mechanical seal, flange connection with pressure measuring connection R 1/8 and motor with one-piece shaft.

Purchase from Pump Sales Direct and recieve free standard delivery.

Type key

Example

IPL 40/160-4/2

IPL

In-line pump

40

Nominal diameter DN of the pipe connection

160

Nominal impeller diameter

4

Rated motor power P2 in kW

2

Number of poles

Your advantages

  • High standard of corrosion protection thanks to cataphoretic coating
  • Standard condensate drainage holes in the motor housings and lanterns
  • Series design: motor with one-piece shaft
  • Version N: Standard motor V1 with stainless steel plug shaft
  • Bidirectional, force-flushed mechanical seal

Technical data

  • Permissible temperature range -20 °C to +120 °C
  • Mains connection 3~400 V, 50 Hz (others on request)
  • Protection class IP 55
  • Nominal diameter Rp 1 to DN 100
  • Max. operating pressure 10 bar (special version: 16 bar)

Materials

  • Pump housing and lantern: EN-GJL-250
  • Impeller: PPO fibreglass-reinforced EN-GJL-200 (depending on pump type)
  • Shaft: 1.4021
  • Mechanical seal: AQEGG; other mechanical seals on request
Delivery & Returns

Pump Sales Direct (PSD) offers a free standard delivery service (2-3 working days) to mainland UK*. The free standard delivery service relates to all pumps on our website and also individually purchased spares or accessories over the value of £50 (before VAT). Individual spares or accessories purchased under £50 will incur a £6.95 delivery charge.

PSD also offers a next day delivery service at a charge of £7.50*, provided we receive your order before 3:30pm Monday to Friday (excludes Weekends and Bank Holidays).

*Excludes UK Islands, Republic of Ireland, Northern Ireland and Scottish Highlands.

UK Delivery Charge Options:-

Standard Delivery (2-3 working days)* - FREE

Next Working Day Delivery (on orders placed before 3:30pm)* - £7.50

Next Working Day Delivery before 10.30 am (on orders placed before 3:30pm)* - £25.00

Next Working Day Delivery before 12.00pm (on orders placed before 3:30pm)* - £15.00

Saturday AM Delivery before 12.00pm*- £35.00

Scottish Highlands Standard Delivery - £17.50

UK Islands & Republic of Ireland Standard Delivery - £25.50

*Excludes UK Islands, Republic of Ireland, Northern Ireland and Scottish Highlands.

Additional Information

Additional Information

Manufacturer Wilo
Guarantee message 1 year guarantee
Dimensions No
Bars 10 bar
Impeller type Single
Electrical supply 400V
AC Power Three Phase
Speed No
Cable length No
Flow rate 2900 Ltr/min
Max Head 18.5m
Pump Operation No
