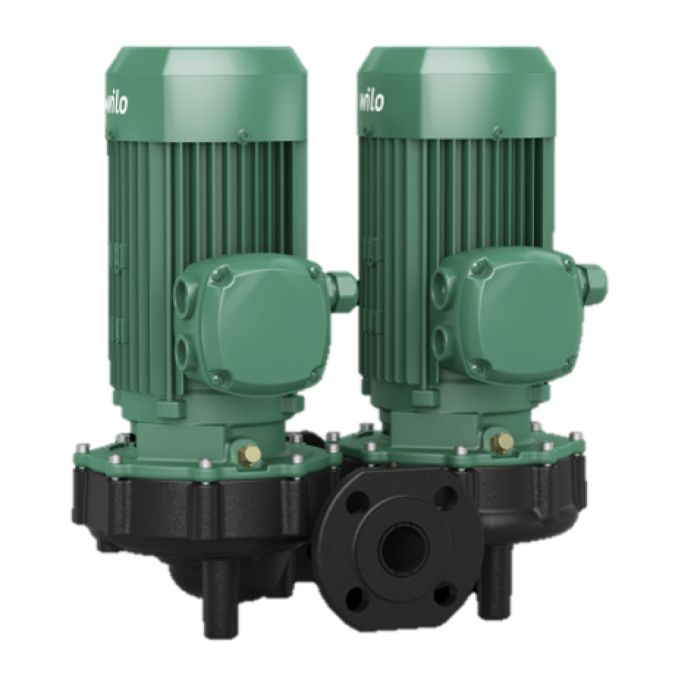

Wilo VeroTwin DPL 100/165-2,2/4-IE3 Centrifugal Pump - 2.20kW

Part Number:
WIL-2121237
This item is now obsolete. Please view our alternatives below.
£8,341.20 RRP £5,505.19 £4,587.66

Free Delivery Over £50

Single-stage, low-pressure twin-head pump in in-line design with switchover valve, mechanical seal, flange connection with pressure measuring connection R 1/8 and motor with one-piece shaft.
1 year warranty With This Product

Single-stage, low-pressure twin-head pump in in-line design with switchover valve, mechanical seal, flange connection with pressure measuring connection R 1/8 and motor with one-piece shaft.

Buy the VeroTwin DPL range from Pump Sales Direct and recieve free standard delivery.

Type key

Example

DPL 40/160‐4/2

DPL

In-line twin-head pump

40

Nominal diameter DN of the pipe connection

160

Nominal impeller diameter

4

Nominal motor power P2 in kW

2

Number of poles

Technical data

  • Permissible temperature range -20 °C to +120 °C
  • Mains connection 3~400 V, 50 Hz (others on request)
  • Protection class IP 55
  • Nominal diameter DN 32 to DN 100
  • Max. operating pressure 10 bar (special version: 16 bar)

Your advantages

  • Reduction of space required and installation costs due to twin-head pump design
  • Main/standby mode or peak-load operation (by means of external auxiliary device)
  • High standard of corrosion protection thanks to cataphoretic coating
  • Series design: motor with one-piece shaft
  • Version N: standard motor B5 or V1 with stainless steel plug shaft

Materials

  • Pump housing and lantern: EN-GJL-250
  • Impeller: PP fibreglass-reinforced /EN-GJL-200 (depending on pump type)
  • Shaft: 1.4021
  • Mechanical seal: AQ1EGG; other mechanical seals on request
More Information
Price £4,587.66
Manufacturer Wilo
Warranty 1 year warranty
Bars 10 bar
Impeller Type Twin
Electrical supply 400V
AC Power Three Phase
Flow Rate 1450 Ltr/min
Max Head 7.5m
Water type Clean or Discoloured
Switch None
Duty Type Commercial
Submersible vs Surface Mounted Surface Mounted
Pump Type Centrifugal Pump
Next Day Delivery No
Manufacturers Part Number 2121237
