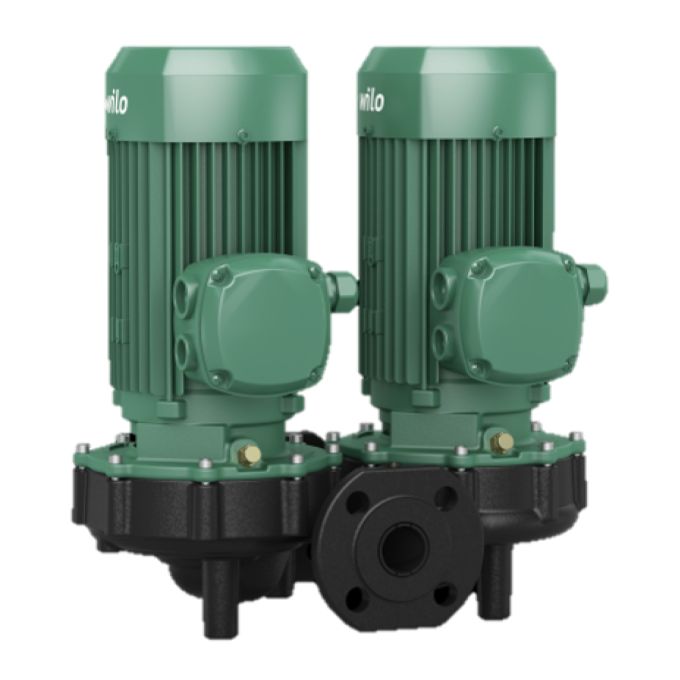

Wilo VeroTwin DPL 40/120-1,5/2 Centrifugal Pump - 1.50kW

Single-stage, low-pressure twin-head pump in in-line design with switchover valve, mechanical seal, ... Show More
Single-stage, low-pressure twin-head pump in in-line design with switchover valve, mechanical seal, flange connection with pressure measuring connection R 1/8 and motor with one-piece shaft. Show Less
In stock
Part Number:
WIL-2121244

Free Delivery On Orders Over £50

See more product information
£2,203.20 RRP £1,432.08 £1,193.40
Add to Compare Add to wishlist

Single-stage, low-pressure twin-head pump in in-line design with switchover valve, mechanical seal, flange connection with pressure measuring connection R 1/8 and motor with one-piece shaft.

Buy the VeroTwin DPL range from Pump Sales Direct and recieve free standard delivery.

Type key

Example

DPL 40/160‐4/2

DPL

In-line twin-head pump

40

Nominal diameter DN of the pipe connection

160

Nominal impeller diameter

4

Nominal motor power P2 in kW

2

Number of poles

Technical data

  • Permissible temperature range -20 °C to +120 °C
  • Mains connection 3~400 V, 50 Hz (others on request)
  • Protection class IP 55
  • Nominal diameter DN 32 to DN 100
  • Max. operating pressure 10 bar (special version: 16 bar)

Your advantages

  • Reduction of space required and installation costs due to twin-head pump design
  • Main/standby mode or peak-load operation (by means of external auxiliary device)
  • High standard of corrosion protection thanks to cataphoretic coating
  • Series design: motor with one-piece shaft
  • Version N: standard motor B5 or V1 with stainless steel plug shaft

Materials

  • Pump housing and lantern: EN-GJL-250
  • Impeller: PP fibreglass-reinforced /EN-GJL-200 (depending on pump type)
  • Shaft: 1.4021
  • Mechanical seal: AQ1EGG; other mechanical seals on request
More Information
Price £1,193.40
Manufacturer Wilo
Guarantee 1 year guarantee
Bars 10 bar
Impeller Type Twin
Electrical supply 400V
AC Power Three Phase
Flow Rate 2900 Ltr/min
Max Head 18.4m
Switch None
Duty Type Commercial
Pump Type Centrifugal Pump
Manufacturers Part Number 2121244
