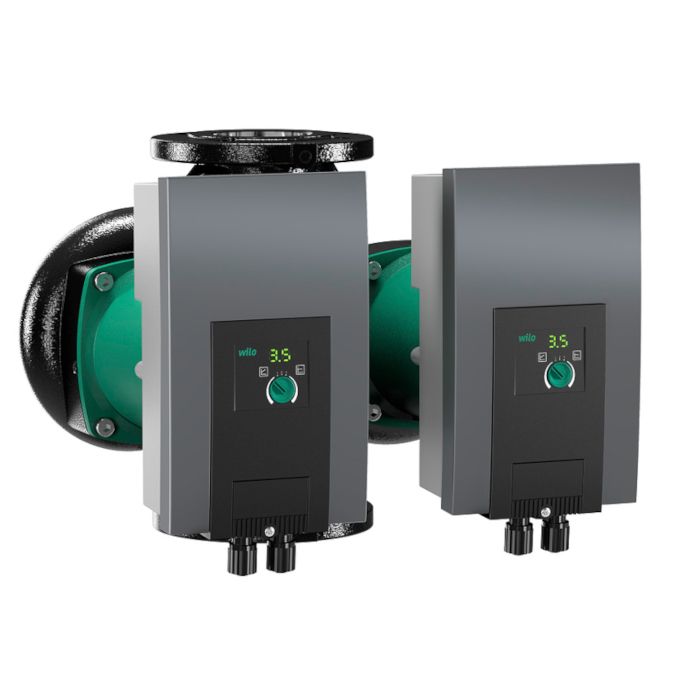

Wilo Yonos Maxo-D 50/0.5-9 PN6/10 Circulator Pump - 230v - Single Phase - 280mm

Part Number:
WI-2120667
This item is now obsolete. Please view our alternatives below.
£4,350.00 RRP £2,871.00 £2,392.50
In stock Hurry! Last Few Remaining

Free Delivery Over £50

Next Day Delivery Available

Glandless circulation pump with threaded connection or flange connection, EC motor with automatic power adjustment.
1 year warranty With This Product

Construction

Glandless circulator with flange connection, EC motor with automatic power adjustment

Application

Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems.

Equipment/function

Operating modes

  • Δp-c for constant differential pressure
  • Δp-v for variable differential pressure

Manual functions

  • Setting the operating mode
  • Setting of pump output (delivery head)

Automatic functions

  • Infinitely variable power adjustment according to the operating mode
  • Deblocking function
  • Soft start
  • Integrated full motor protection

Signal and display functions

  • Collective fault signal (potential-free NC contact)
  • Fault signal light
  • LED segment display for displaying the delivery head and fault codes

Twin-head pump function

  • Main/standby operation: for an automatic fault-actuated switchover, a corresponding switchgear must be provided on-site.
  • Predefined control mode and set delivery head must be identical for both pumps.

Equipment

  • Wrench attachment point on pump body (for threaded pipe union pumps)
  • Quick electrical connection with Wilo plug. For the connection of the mains and SSM lines, with integrated strain relief
  • For flange-end pumps: Flange versions
    • Standard version for pumps DN 32 to DN 65: Combination flange PN 6/10 (flange PN 16 acc. to EN 1092-2) for counter flanges PN 6 and PN 16
    • Standard version for DN 80/DN 100 pumps: PN 6 flange (designed for PN 16 according to EN 1092-2) for PN 6 counter flange
More Information
Price £2,392.50
Manufacturer Wilo
Warranty 1 year warranty
Bars 10 bar
Electrical supply 230V
AC Power Single Phase
Max Head 9m
Water type Clean or Discoloured
Pump Type Circulator Pump
Duty Type Domestic
Submersible vs Surface Mounted Surface Mounted
Next Day Delivery Yes
Port To Port 280mm
Manufacturers Part Number 2120667
