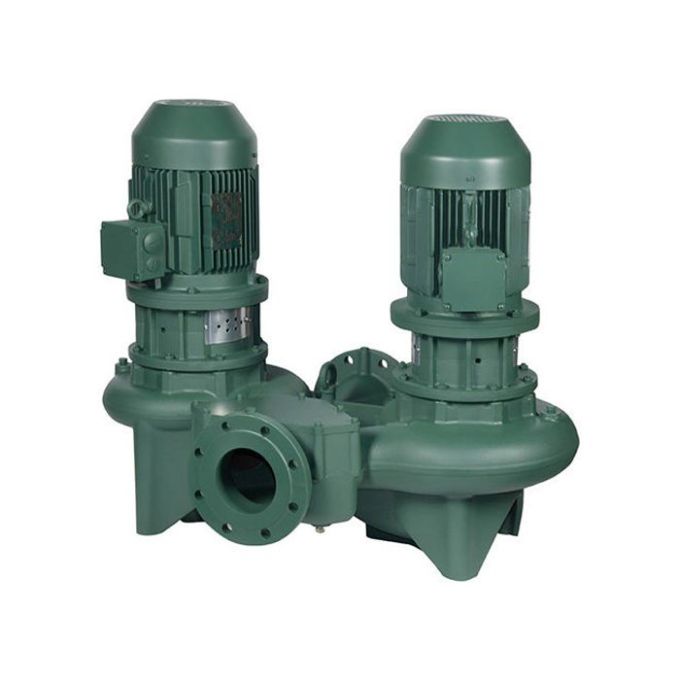

DAB DCP-G 100-3050/A/BAQE/15-IE3 Twin Head In-Line Circulator Pump - 400v - Three Phase - 7005 Ltr/min
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
Applications
Circulating pumps with IN-LINE connections, suitable for civil and industrial installations for heating, conditioning, refrigeration and hot water for plumbing. Available in single and twin version.
Construction Features
Flanged suction and delivery connections in PN 16 with threaded holes for control pressure gauges. Cast iron pump casing and motor support, cast iron and technopolymer impeller. Stainless steel motor shaft, and SEE "SHAFT SEAL" SECTION mechanical seal. Asynchronous threephase motor, 2 poles, closed and cooled with external ventilation.
Protection: IP 55
Insulation class: F
- Operating range: from 3,6 to 420 m3/h with head up to 102 metres
- Liquid quality requirements: clean, free from solids or abrasive substances, non viscous,
non aggressive, non crystallized, chemically neutral, close to the characteristics of water.
| Price | £10,002.78 |
|---|---|
| Manufacturer | Dab |
| Warranty | 1 year warranty |
| Electrical supply | 400V |
| AC Power | Three Phase |
| Flow Rate | 7005 Ltr/min |
| Max Head | 102m |
| Water type | Clean or Discoloured |
| Pump Type | Circulator Pump |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Surface Mounted |
| Next Day Delivery | No |
| Manufacturers Part Number | 60167366 |
