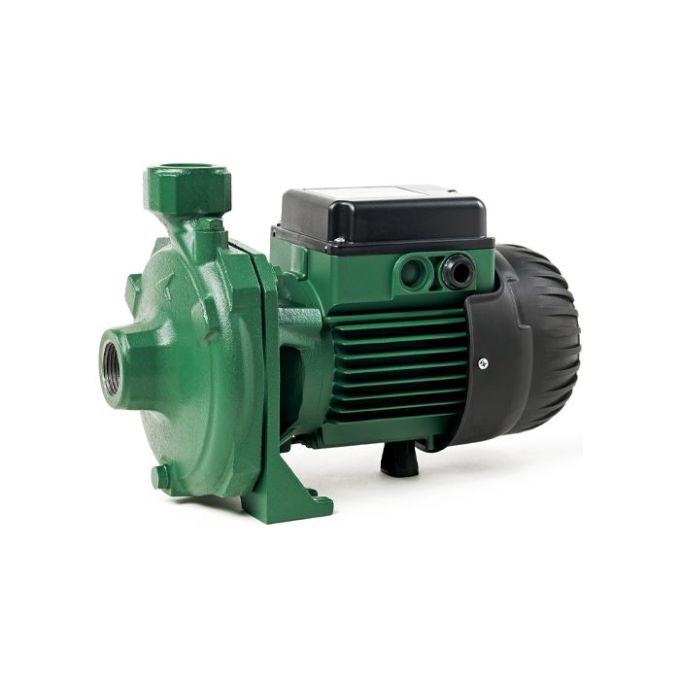

DAB K 30/70 M Single Impeller Centrifugal Pump - 240v - Single Phase
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
Applications
Single impeller centrifugal pump suitable for domestic, civil, industrial and agricultural installations and for decanting, mixing and irrigating uses.
Constructional Features Of The Pump
Cast iron pump body and motor support.
Technopolymer impeller for K 20/41, K 30/70, K 30/100, K 36/100, K 12/200, K 36/200, K 40/200, K 55/200.
Cast iron impeller for K 14/400, K 11/500, K 18/500, K 28/500, K 40/400, K 50/400, K 30/800, K 40/800, K 50/800, K 20/1200, K 25/1200, K 35/1200.
Carbon/ceramic mechanical seal.
Constructional Features Of The Motor
Induction motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and long life.
Built-in thermal and current overload protection and a capacitor permanently in circuit in the single-phase version.
Three-phase motors should be protected with a suitable overload protection complying with the regulations in force.
Manufactured according to CEI 2-3 standards.
Motor protection: IP44 (IP 55 for motor to 2,2 - 3 - 4 - 5,5 - 7,5 - 9,2 - 11 kW)
Terminal box protection: IP55
Insulation class: F
- Operating range: from 1.8 to 96 m3/h with head up to 62 metres
- Liquid quality requirements: clean, free from solids or abrasive substances, non viscous, non aggressive, non crystallized, chemically neutral, close to the characteristics of water.
- Liquid temperature range:
K 20/41, K 30/70, K 30/100, K 36/100
K 12/200, K 36/200, K 40/200 : from -10°C to +50°C
The rest of the range : from -15°C to +110°C
- Maximum ambient temperature: +40°C
| Price | £443.34 |
|---|---|
| Manufacturer | Dab |
| Warranty | 1 year warranty |
| Electrical supply | 400V |
| AC Power | Three Phase |
| Max Head | 102m |
| Water type | Clean or Discoloured |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Surface Mounted |
| Pump Type | Centrifugal Pump |
| Next Day Delivery | No |
| Manufacturers Part Number | 102110024 |
