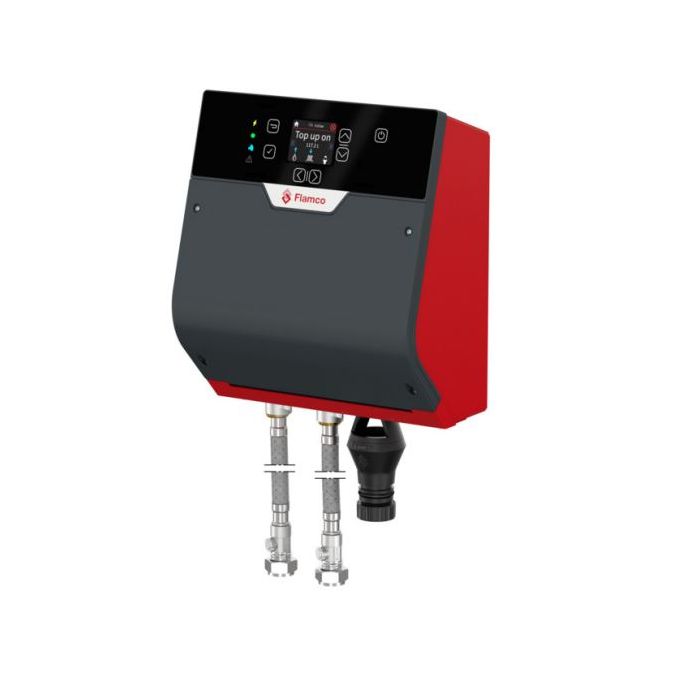

Flamco Flexfiller Direct G4 Pumpless Top-Up Pressurisation Unit - Wall Mounted - 14 Ltr/min

The Flexfiller Direct G4 is the latest in pumpless digital pressurisation technology for light commercial and residential buildings. It’s a slim, wall-mounted pumpless top-up pressurisation unit, with a top-up flow rate of up to 14 l/min depending on the mains or boosted mains, water pressure. It is designed to be connected directly to a building’s incoming water supply using the included flexible hose. It is there to fill and maintain the pressure of a heating or chilled water system without the need for a pump

The unit comes with a user-friendly controller that displays all operating and error conditions comprehensibly and conveniently. It features extensive data storage for online and offline analysis, microprocessor control, and self-learning algorithms with a graphical display. It comes with MODBUS RTU and BACnet communication protocols as standard and has its key operating parameters password protected.

Features & Benefits:

• Silent, Pumpless pressurisation unit
• FIlls system from empty
• For systems up to 15,000 LItres
• Fluid protection category 4 backflow prevention
• ONscreen service reminder every 12 months
• Colours: Grey (RAL7016) and Red (RAL3002)
• Password protected
• PRessure setting in 0.1 bar increments
• FLoor protection runtime limiter and excessive activation logging
• Volt free contact: common alarm (N/C or N/O) fully programable for specific alarms customisable via control unit)
• Extensive data storage online or offline analysis
• Advanced technology ensures the lowest power consumption, Long service life and easy maintenance
• Microprocessor control, self-learning with graphical display
• Max flow rate of 14 Ltr/min
• Connects directly to the mains (booster) water mains, via included flexible hose (Length: 400mm)

Advantages:

• Universal connection to drain fits 22 mm copper compression, 32mm PP push fit and 32mm PP solvent weld discharge pipe to BS 5254 or BS EN1451
• The user-friendly control unit displays all operating and error conditions in a logical and convinient way
• Four status LED indicators
• System safety valve monitoring
• Leak detection
• USage monitor, logs and counters
• MODBUS RTU and BACnet Communication Protocol via RS485
• Can be combined with Flamconnect Remote Service (Check with local sales office)
• Two 40cm flecible hoses (for mains and sealed system connection) included for easy installation
