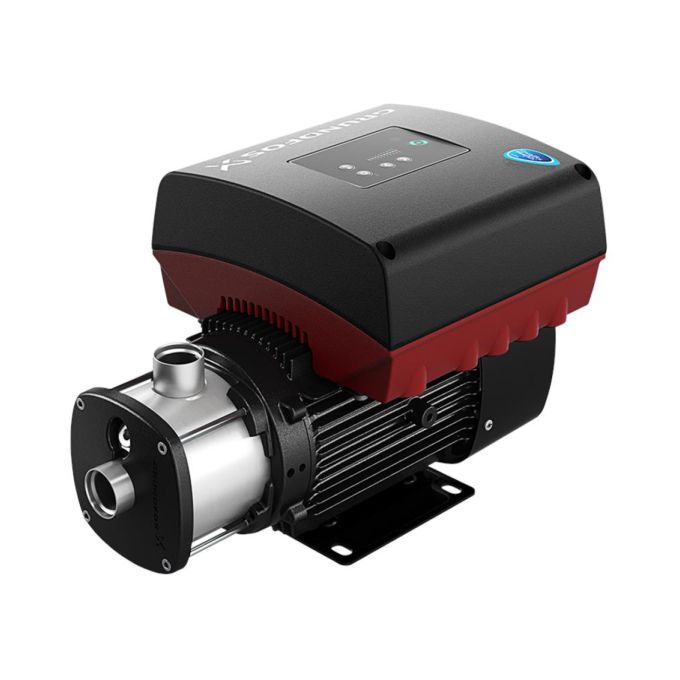

Grundfos CME 3-4-I A R I E AQQE Horizontal Multi-Stage Booster Pump - 240v

Grundfos CME 304 Stainless Steel Horizontal Multi-Stage Booster Pumps with new MGE/MLE motors ... Show More
Grundfos CME 304 Stainless Steel Horizontal Multi-Stage Booster Pumps with new MGE/MLE motors represent the state-of-the-art speed-controlled motors and efficiency.  Total efficiency of the new motor, including the frequency converter makes the CME unique for its class when it comes to efficiency. Show Less
In stock
Part Number:
GR-98394981

Free Delivery On Orders Over £50

See more product information
£1,448.40 RRP £1,013.88 £844.90
Add to Compare Add to wishlist

CME 3-4 A-R-I-E-AQQE U-A-D-N

Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. Pump materials in contact with the liquid are in stainless steel. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal Whitworth pipe threads, Rp (ISO 7/1).

The pump is fitted with a 1-phase, fan-cooled, permanent-magnet, synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.

An operating panel on the motor terminal box enables setting of required setpoint as well as setting of pump to "Min." or "Max." operation or to "Stop". The Grundfos Eye indicator on the operating panel provides visual indication of pump status:

  • "Power on": Motor is running (rotating green indicator lights) or not running (permanently green indicator lights)
  • "Warning": Motor is still running (rotating yellow indicator lights) or has stopped (permanently yellow indicator lights)
  • "Alarm": Motor has stopped (flashing red indicator lights).

Communication with the pump is possible by means of Grundfos GO Remote (accessory). The remote control enables further settings as well as reading out of a number of parameters such as "Actual value", "Speed", "Power input" and total "Power consumption".

The terminal box holds terminals for these connections:

  • one dedicated digital input
  • two analog inputs, 0(4)-20 mA, 0-5 V, 0-10 V, 0.5 - 3.5 V
  • 5 V voltage supply to potentiometer and sensor
  • one configurable digital input or open-collector output
  • Grundfos Digital Sensor input and output
  • 24 V voltage supply for sensors
  • two signal-relay outputs (potential-free contacts)
  • GENIbus connection
  • interface for Grundfos CIM fieldbus module.
More Information
Price £844.90
Manufacturer Grundfos
Guarantee 1 year guarantee
Dimensions 233mm (h) x 212mm (w) x 343.9mm (d)
Impeller Type Horizontal multistage
Electrical supply 240V
AC Power Single Phase
Speed Variable
Flow Rate 83 Ltr/min
Max Head 39.45m
Pump Type Circulator Pump
Switch None
Duty Type Commercial
Manufacturers Part Number 98394981
