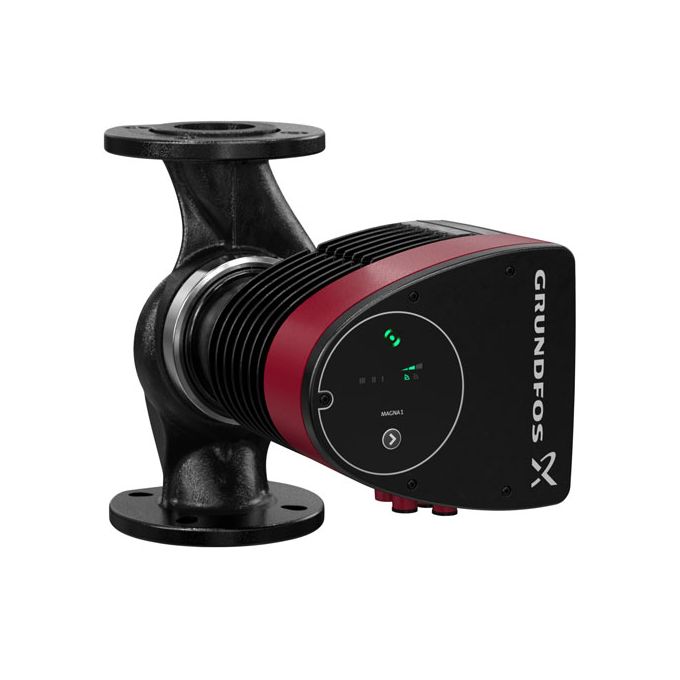

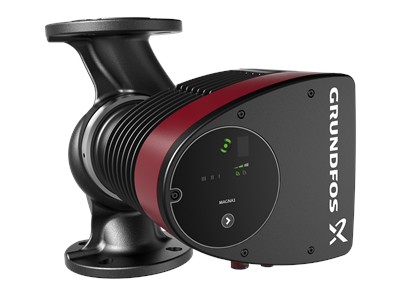

Grundfos Magna1 40-100F 97924177 Variable Speed Circulator - 220mm - 230v - Obsolete

Part Number:
GR-97924177
This item is now obsolete. Please view our alternatives below.
Now Obsolete - See Replacement Below

Free Delivery Over £50

3 week lead time

Grundfos Magna1 40-100F (220) ERP/EUP ready variable speed circulator. The Grundfos Magna1 40-100F (220) is an energy efficient variable speed circulator which is used primarily for one and two-pipe heating systems. NOTE: THIS PUMP HAS FLANGED CONNECTIONS
1 year warranty With This Product

MAGNA1 circulator pump with easy selection of pump settings.

The pump is of the canned-rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. In order to avoid problems in connection with disposal, great importance has been attached to using as few different materials as possible. A pump with no maintenance requirements and extremely low life cycle cost.

Heating systems

• Main pump

• mixing loops

• heating surfaces

• air-conditioning surfaces.

The MAGNA1 circulator pumps are designed for circulating liquids in heating systems with variable flows where it is desirable to optimise the setting of the pump duty point, thus reducing energy costs. The pumps are also suitable for domestic hot-water systems. To ensure correct operation, it is important that the sizing range of the system falls within the duty range of the pump.

Benefits

• Safe selection.

• Simple installation.

• Low energy consumption. All MAGNA1 pumps comply with the EuP requirements.

• Nine light fields for indication of pump setting. Three proportional-pressure curves, three constant-pressure curves and three fixed-speed curves are available.

• Low noise level.

• No mainteance and long life.

More Information
Price £806.00
Manufacturer Grundfos
Warranty 1 year warranty
Dimensions 220mm (h) x 234mm (w) x 369mm (d)
Impeller Type Single
Electrical supply 230V
AC Power Single Phase
Speed Variable
Flow Rate 383 Ltr/min
Max Head 12m
Water type Clean or Discoloured
Pump Type Circulator Pump
Switch None
Duty Type Commercial
Submersible vs Surface Mounted Surface Mounted
Next Day Delivery No
Port To Port 220mm
Connection Size DN40
Connection Type DIN
Manufacturers Part Number 97924177
