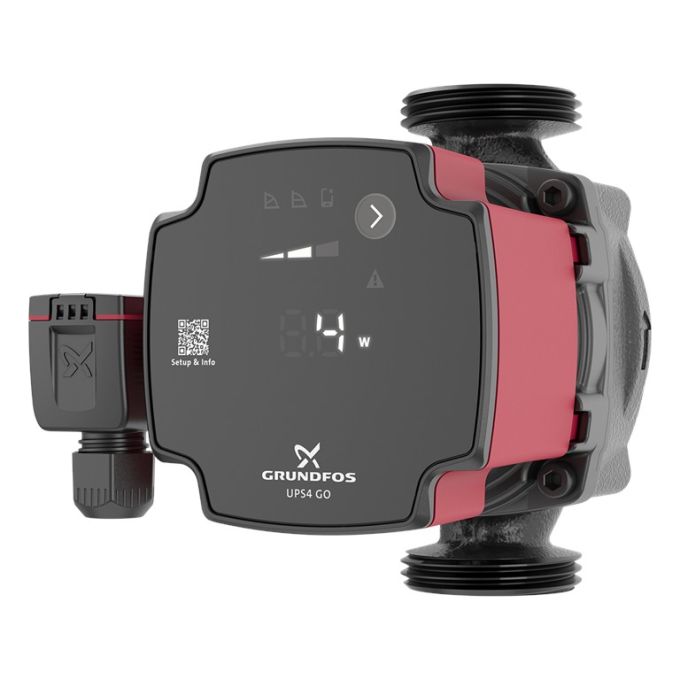

Grundfos UPS4 GO 25-65 130 - Heating Circulator Pump - 10 Bar - 240v
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
5 years warranty With This Product
Grundfos UPS4 GO
The Grundfos UPS4 GO is a high-efficiency circulator pump featuring an electronically commutated motor, engineered for reliable and energy-conscious circulation of liquids within heating and air conditioning systems. Suitable for commercial, district, and domestic heating applications, it combines intelligent controls with a robust, low-maintenance design.
Key Features
- Three Control Modes: Constant pressure, proportional pressure, and constant curve — each with three adjustable speed settings, providing precise control to suit a wide range of system requirements
- Easy Replacement & Curve Replication: Designed to replace older integrated and stand-alone circulator pumps with minimal disruption, using the Grundfos GO app and operating panel to replicate existing pump curves quickly and accurately
- Toolless Installer Plug: Enables fast and straightforward electrical connection, reducing installation time on-site
- Automatic Self-Venting & Dry-Running Protection: Ensures quiet, reliable operation without the need for manual intervention during commissioning
- Robust Startup Technology: Reduces the risk of blockages caused by dirt, magnetite, and limescale build-up. In the event of a blocked pump, the motor continuously attempts to restart at maximum torque to ensure startup under demanding conditions
- Ceramic Shaft & Bearings: Engineered for minimal wear, resulting in an extended service life and a reduced likelihood of noise caused by increased bearing clearance over time
- Simplified Fault Finding: On-board error codes displayed on the pump operating panel enable rapid diagnostics without specialist equipment
Suitable Applications
- Commercial Heating
- District Heating
- Domestic Heating
Summary
The Grundfos UPS4 GO delivers an intelligent, durable, and installer-friendly solution for modern heating and air conditioning circulation requirements. Its combination of flexible control modes, self-protecting features, and easy commissioning via the Grundfos GO app makes it a highly practical choice for both new installations and direct replacement of legacy pump systems.
| Price | £119.00 |
|---|---|
| Manufacturer | Grundfos |
| Warranty | 5 years warranty |
| Dimensions | 130mm (h) x 123mm (w) x 127mm (d) |
| Bars | 10 bar |
| Electrical supply | 240V |
| AC Power | Single Phase |
| Flow Rate | 2.43 m³/h |
| Max Head | 9m |
| Water type | Clean or Discoloured |
| Pump Type | Central Heating Pump |
| Switch | None |
| Duty Type | Domestic |
| Next Day Delivery | No |
| Port To Port | 130mm |
| Connection Size | 1 1/2 inch |
| Manufacturers Part Number | 93074168 |
