Pump Sales Direct NanoPress 130 Pressurisation Unit - Single Pump - 0.7–3 Bar
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
2 years warranty With This Product

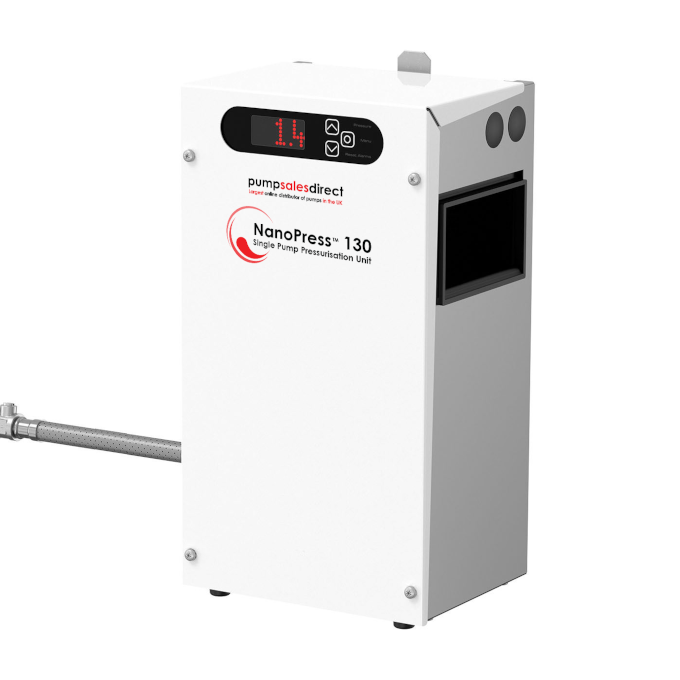

The NanoPress 130 from Pump Sales Direct is a compact, fully enclosed digital pressurisation unit designed for sealed systems. Equipped with an electronic pressure transducer and a user-friendly microprocessor, it ensures reliable operation by maintaining the minimum system pressure requirements.
Key Features
- Precise Pressure Control: Adjustable in 0.1 bar increments.
- User-Friendly Interface: Intuitive display allows commissioning in just 30 seconds.
- Enhanced Safety: Improved leak protection and visible AB air gap for compliance with water authority regulations.
- Integrated Alarm System: Volt-free contacts include one Common Alarm output.
- Flow Efficiency: Delivers a flow rate of 0.5 l/min at 1 bar.
- Enclosure: Metal.
Technical Specifications
- Pressure Range: 0.7 – 3.0 bar.
- Operating Temperatures:
- System: 5°C to 85°C.
- Supply: 5°C to 45°C.
- Mains Supply Pressure: 0.5 – 6.0 bar.
- System PN Rating: PN6.
- Maximum Top-Up Pressure: 3.0 bar.
- Humidity Range: 60–70%, non-condensing.
Certifications & Standards
The NanoPress 130 meets stringent safety and engineering standards:
- Fluid Protection: Category 5 compliance with BS EN 13077 (2023).
- Pressure Equipment: Conforms to PED 2014/68/EU.
- Electrical Safety: Compliant with IEE and Low Voltage Directive 2014/35.
- EMC Standards: Meets EMC 2004/108/EC and EN 61000-6-2/6-3 for industrial and residential environments.
- Machinery Safety: Certified under the Machinery Directive 2006/42/EC and UK Safety Regulations 2008.
Why Choose NanoPress 130?
Combining compact design, efficient operation, and robust safety features, the NanoPress 130 is an ideal solution for ensuring consistent pressure in sealed systems. Its compliance with a wide range of industry standards makes it a reliable and worry-free choice.
| Price | £455.00 |
|---|---|
| Number of Pumps | 1 |
| Warranty | 2 years warranty |
| Dimensions | 34.5 cm H x 23.5 cm W x 15.2 cm D |
| Bars | 3 bar |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Switch | None |
| Duty Type | Domestic |
| Pump Type | Pressurisation Unit |
| Next Day Delivery | Yes |
| Manufacturers Part Number | PSD-20191 |
