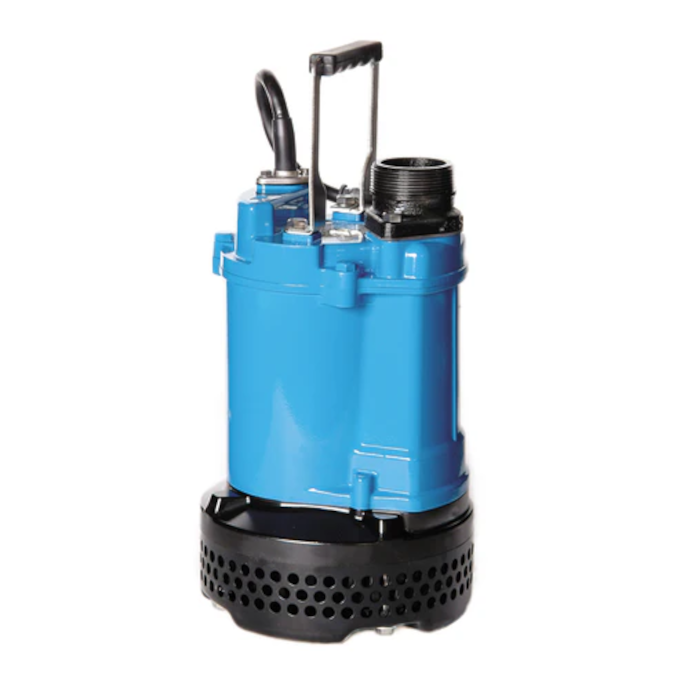

Tsurumi KTV2-22 Submersible Drainage Pump - Manual - 400v - Three Phase
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
The Tsurumi KTV2-22 is a robust and versatile submersible drainage pump designed for heavy-duty applications in construction, mining, and industrial settings. This 400V three-phase pump combines portability with durability, making it an ideal choice for contractors and site managers dealing with challenging dewatering tasks.
Key Features and Specifications
Performance
- Maximum flow rate: 525 litres per minute
- Maximum head: 24 metres
- Free passage: 8.5mm
Construction
- Lightweight cast aluminium motor body for improved portability
- Pressed steel strainer for durability
- Vortex impeller made of ductile iron for excellent wear resistance
- Rubber pump chamber for handling abrasive materials
Motor and Power
- Power output: 2.2 kW
- Voltage: 400V three-phase
- Built-in thermal protection
Sealing and Lubrication
- Double mechanical seal with silicon carbide faces
- Oil lifter for positive seal lubrication in any position
- Oil bath chamber for seal cooling and lubrication
Additional Features
- 20-metre heavy-duty rubber power cable included
- 2" BSPM outlet with included hose connector
- Top discharge design for efficient motor cooling
- Capable of extended operation with minimal water levels
The Tsurumi KTV2-22 is engineered to handle water containing sand and silt, making it suitable for a wide range of applications including construction site dewatering, quarry operations, and industrial processes. Its robust construction and innovative features ensure reliable performance and minimal maintenance requirements, even in severe operating conditions.
| Price | £1,757.34 |
|---|---|
| Manufacturer | Tsurumi |
| Warranty | 1 year warranty |
| Dimensions | 41.6 cm H x 24 cm W x 24 cm D |
| Electrical supply | 400V |
| AC Power | Three Phase |
| Flow Rate | 525 Ltr/min |
| Max Head | 24m |
| Pump Operation | Manual (without float switch) |
| Water type | Dirty Water |
| Pump Type | Submersible |
| Switch | None |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Submersible |
| Next Day Delivery | No |
| Manufacturers Part Number | 10-10-1029 |
