Tsurumi KTV2-80 Submersible Pump – With Agitator - Manual – 400v - Three Phase
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product

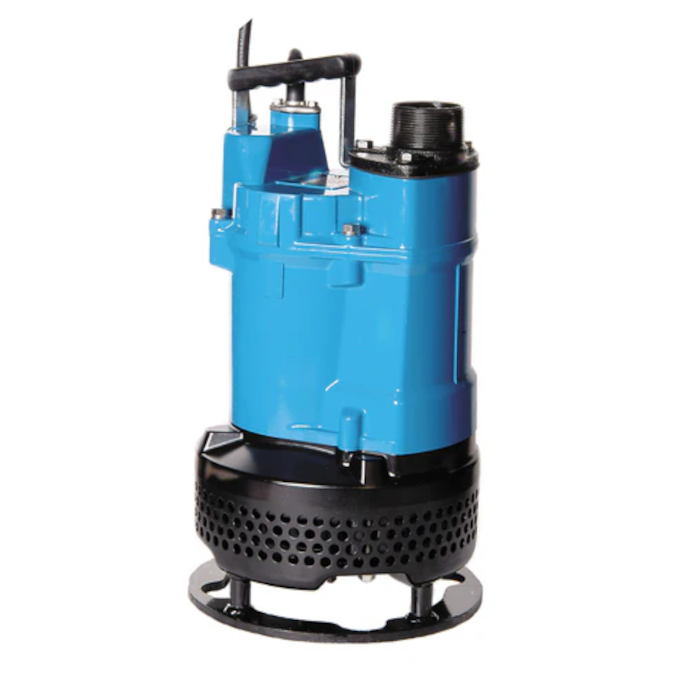

The Tsurumi KTV2-80 is a robust, three-phase submersible slurry pump designed for heavy-duty applications in construction, mining, and industrial settings. This model features a built-in agitator, making it particularly effective for handling liquids with high concentrations of solids.
Key Specifications
- Model: KTV2-80
- SKU: 10-10-1146
- Pump Type: Submersible slurry pump with agitator
- Power Supply: 400V, Three-phase
- Maximum Flow Rate: 725 litres per minute (43.50 m³/h)
- Maximum Head: 23 metres
- Outlet Size: 3" BSPM and 80mm
- Motor Power: 3 kW
- Maximum Solid Passage: 10mm
- Maximum Operating Temperature: 40°C
Design Features
- Impeller: Vortex-type made of chromium iron for excellent wear resistance
- Agitator: Built-in, made of chromium iron to stir solids into suspension
- Mechanical Seal: Dual hard-face (silicon carbide – silicon carbide) in oil bath for enhanced durability
- Pump Chamber: Rubber-lined for improved wear resistance
- Shaft: 403 stainless steel
- Motor Protection: Internal overload for simple installation
Physical Characteristics
- Dimensions: 295mm (W) x 295mm (L) x 550mm (H)
- Dry Weight: 37 kg
- Cable: Supplied with 20 metres of heavy-duty rubber power cable
The KTV2-80 is designed for efficient pumping of slurries and liquids with high solid content, making it ideal for applications in construction sites, quarries, and concrete mixing plants.
| Price | £2,896.14 |
|---|---|
| Manufacturer | Tsurumi |
| Warranty | 1 year warranty |
| Dimensions | 55 cm H x 29.5 cm W x 29.5 cm D |
| Electrical supply | 400V |
| AC Power | Three Phase |
| Flow Rate | 725 Ltr/min |
| Max Head | 23m |
| Pump Operation | Manual (without float switch) |
| Water type | Dirty Water |
| Pump Type | Submersible |
| Switch | None |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Submersible |
| Next Day Delivery | No |
| Manufacturers Part Number | 10-10-1146 |
