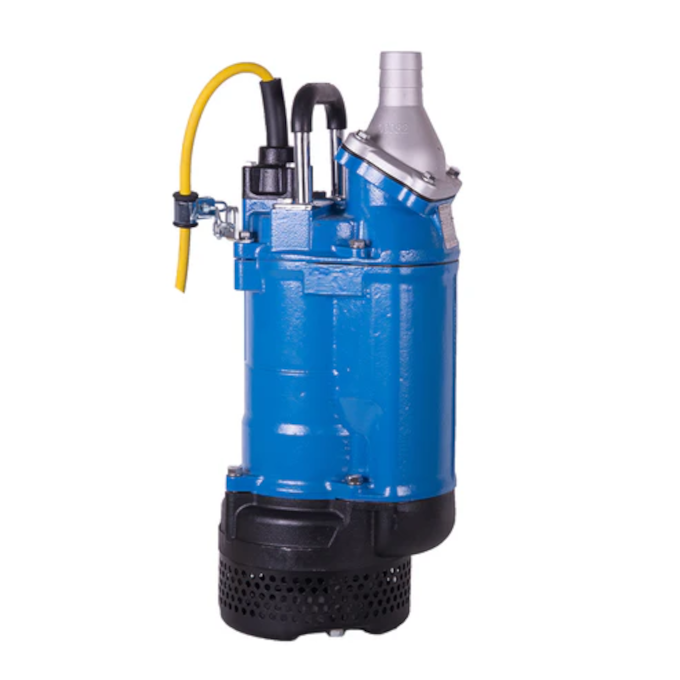

Tsurumi KTZ32.2 Heavy-Duty Drainage Sump Pump – Manual – 400v – Three Phase
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
The Tsurumi KTZ32.2 is a robust and versatile heavy-duty drainage sump pump designed for demanding industrial and construction applications. This manual, three-phase 400V pump combines durability with high performance, making it an ideal choice for contractors and site managers dealing with challenging dewatering tasks.
Key Features and Specifications
Performance:
- Maximum flow rate: 800 litres per minute
- Maximum head: 20 metres
- Free passage: 8.5 mm
Construction:
- Outlet size: 3" BSPM & 80 mm
- Motor power: 2.2 kW
- Voltage: 400V (three-phase)
Dimensions and Weight:
- Width: 216 mm
- Length: 235 mm
- Height: 498 mm
- Dry weight: 34 kg
Design and Durability
The KTZ32.2 features a cast iron pump casing and motor frame, complemented by an open impeller made of chromium iron. This construction ensures exceptional wear resistance, maximising performance and minimising maintenance even in harsh operating conditions. The pump is equipped with a heavy-duty motor fitted with internal overloads, allowing for simple installation and direct connection to the power supply.
Advanced Sealing System
A key feature of the KTZ32.2 is its 420 stainless steel shaft fitted with an ultra-hardwearing, silicon carbide, double mechanical seal housed in an oil chamber. The pump also incorporates a patented oil lifter for positive seal lubrication in any position, enhancing its durability and reliability.
Versatility and Maintenance
The KTZ32.2 is designed for easy maintenance, allowing simple replacement of wearing parts without the need for specialised tools or a workshop. Additionally, users can alter the pump's head and capacity by changing the impeller and suction cover, providing flexibility for various applications without the need to purchase a new pump.
| Price | £1,834.56 |
|---|---|
| Manufacturer | Tsurumi |
| Warranty | 1 year warranty |
| Dimensions | 49.8 cm H x 21.6 cm W x 23.5 cm D |
| Flow Rate | 800 Ltr/min |
| Max Head | 20m |
| Pump Operation | Manual (without float switch) |
| Water type | Dirty Water |
| Pump Type | Sump Pump |
| Switch | None |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Submersible |
| Next Day Delivery | No |
| Manufacturers Part Number | 10-10-1192 |
