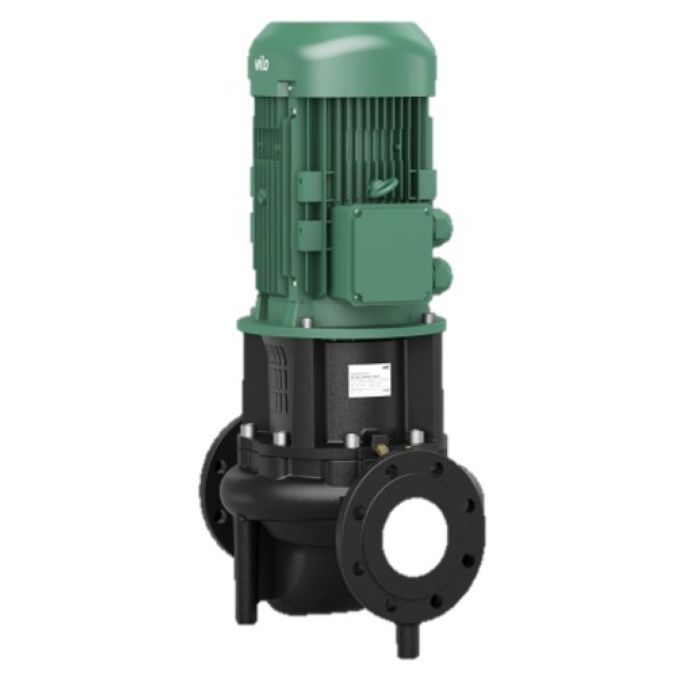

Wilo Cronoline IL 50/200-1,5/4 Centrifugal Pump - 400v - Three Phase
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
Single-stage, low-pressure centrifugal pump in in-line design with a mechanical seal, flange connection with pressure measuring connection R 1/8, lantern, coupling and IEC standard motor.
Buy the Wilo Cronoline range from Pump Sales Direct and recieve free standard delivery.
Type key
|
Example |
IL 40/160-4/2 |
|
IL |
In-line pump |
|
40 |
Nominal diameter DN of the pipe connection |
|
160 |
Nominal impeller diameter |
|
4 |
Rated motor power P2 in kW |
|
2 |
Number of poles |
Technical data
- Permissible temperature range -20 °C to +140 °C
- Mains connection 3~400 V, 50 Hz (others on request)
- Protection class IP 55
- Nominal diameter DN 32 to DN 250
- Max. operating pressure 16 bar (25 bar on request)
Materials
- Pump housing and lantern: Standard: EN-GJL-250; optionally spheroidal cast iron EN-GJS-400-18-LT
- Impeller: Standard: EN-GJL-200; special version: Bronze CuSn 10
- Shaft: 1.4122
- Mechanical seal: AQEGG; other mechanical seals on request
Your advantages
- Reduced life cycle costs thanks to optimized efficiency
- Standard condensate drainage holes in the motor housings
- Can be used flexibly in air-conditioning and cooling systems, with application benefits due to direct draining of condensate via optimised lantern design (patented)
- High standard of corrosion protection thanks to cataphoretic coating
- High worldwide availability of standard motors (according to Wilo specifications) and standard mechanical seals
| Price | £1,832.82 |
|---|---|
| Manufacturer | Wilo |
| Warranty | 1 year warranty |
| Bars | 16 bar |
| Impeller Type | Single |
| Electrical supply | 400V |
| AC Power | Three Phase |
| Switch | None |
| Duty Type | Commercial |
| Pump Type | Centrifugal Pump |
| Next Day Delivery | Yes |
| Manufacturers Part Number | 2120755 |
