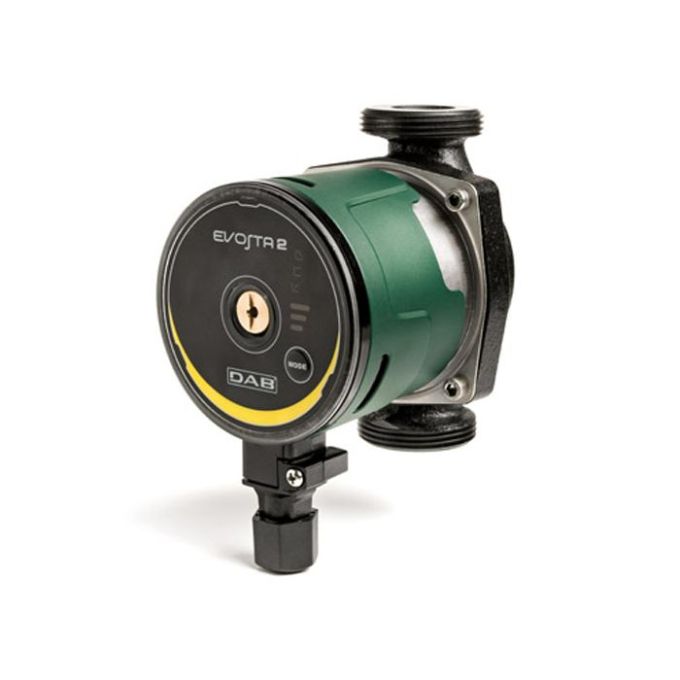

DAB Evosta2 40-70/130 Domestic Heating Circulator Pump - 240v - Single Phase - 60 Ltr/min
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
Applications
The DAB Evosta2 40-70/130 is a domestic hot water circulator pump with low energy consumption electronic central heating pump for water circulation in all types of domestic heating and cooling systems.
Advantages Of The Evosta2
The new range of EVOSTA 2 circulators by DAB combines the strength of an mechanical circulator with the benefits of the electronic circulator. Thanks to the permanent magnet synchronous motor, the frequency converter and the energy efficiency of EEI ≤ 0.18, as well as the protection class IPX5 and the integrated bleeding plug, the EVOSTA 2 family ranks as one of the best products in the category in terms of performance and reliability. The range of EVOSTA 2 circulators is the perfect replacement for old three-speed circulators due to its compact size and all-round performance. The product is also extremely user-friendly, with a single button for sequential setting and direct access to the motor shaft for unlocking it when necessary.
Construction Features Of The Pump
Cast iron pump body with cataphoresis paint coating and wet rotor motor. Steel motor casing, techno polymer impeller. Ceramic motor shaft on ceramic bushings lubricated by the pumped liquid. Stainless steel rotor liner, stator liner and closing flange. Graphite thrust ring. EPDM seal ring and brass bleeding plug. Thanks to the internal protection of the motor, the pump does not require any overload protection.
Construction Features Of The Electronics
The settings of the EVOSTA 2, EVOSTA 3 circulators can be modified in the control panel on the facia of the pump device. The pumps have nine settings that can be selected scrolling the MODE button. Three LED lights on the facia show the current setting.
| Price | £218.48 |
|---|---|
| Manufacturer | Dab |
| Warranty | 1 year warranty |
| Electrical supply | 240V |
| AC Power | Single Phase |
| Flow Rate | 60 Ltr/min |
| Max Head | 7m |
| Water type | Clean or Discoloured |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Surface Mounted |
| Pump Type | Circulator Pump |
| Next Day Delivery | No |
| Manufacturers Part Number | 60193269 |
