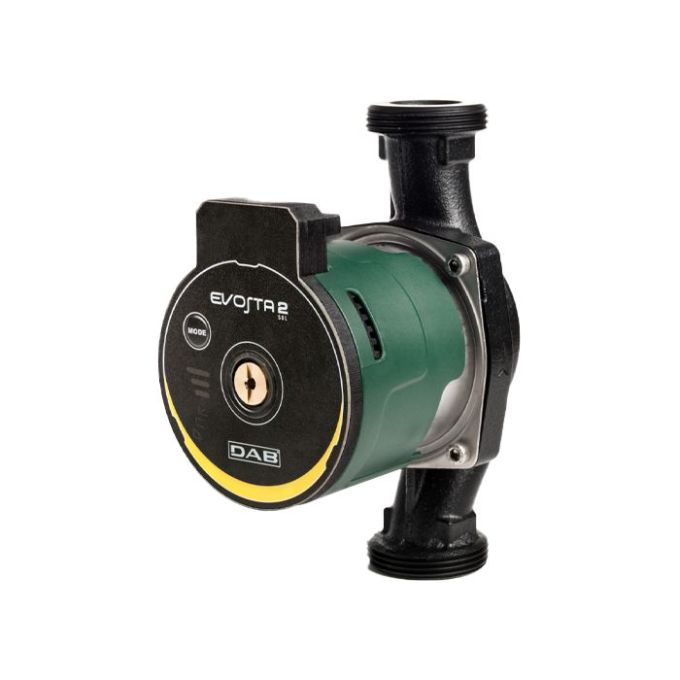

DAB Evosta2 SOL 20-75/130 Solar Domestic Heating Circulator Pump - 240v - Single Phase - 66 Ltr/min
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
Wet rotor electronic central heating circulator pump designed for the circulation of water in residential building service with thermal solar collector heating systems. IPX5 protection.
The circulator is ideal for replacing old three-speed circulators thanks to its compact size and all-round performance. A single key simplifies configuration.
The included calcium removal cartridge keeps the motor shaft in perfect condition, preventing the normal formation of limescale that it can be generated inside the circulator if some air bubbles are present during the first installation. 5 years warranty.
Construction Features OF The Pump
Cataphoretically-coated cast iron pump casing. Steel motor casing, technopolymer impeller. Stainless steel rotor sleeve, stator sleeve and closing flange. Graphite thrust ring. EPDM sealing rings and brass air vent plug.
Construction Features Of The Motor
Permanent-magnet synchronous motor. Motor with internal overload protection. Energy efficiency index of EEI ≤ 0.20. Direct access to the motor shaft for releasing it when necessary. 1,5 meters molex plug cable.
Contstruction Features Of The Electronics
Control panel on circulator cover. Mode key for selecting nine configuration options. The settings are indicated on the six-segment LED display. The variable frequency drive offers protection against water hammer action and helps to save energy.
| Price | £355.95 |
|---|---|
| Manufacturer | Dab |
| Warranty | 1 year warranty |
| Electrical supply | 240V |
| AC Power | Single Phase |
| Cable length | 1.5m |
| Flow Rate | 66 Ltr/min |
| Max Head | 7.5m |
| Water type | Clean or Discoloured |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Surface Mounted |
| Pump Type | Circulator Pump |
| Next Day Delivery | No |
| Manufacturers Part Number | 60188404 |
