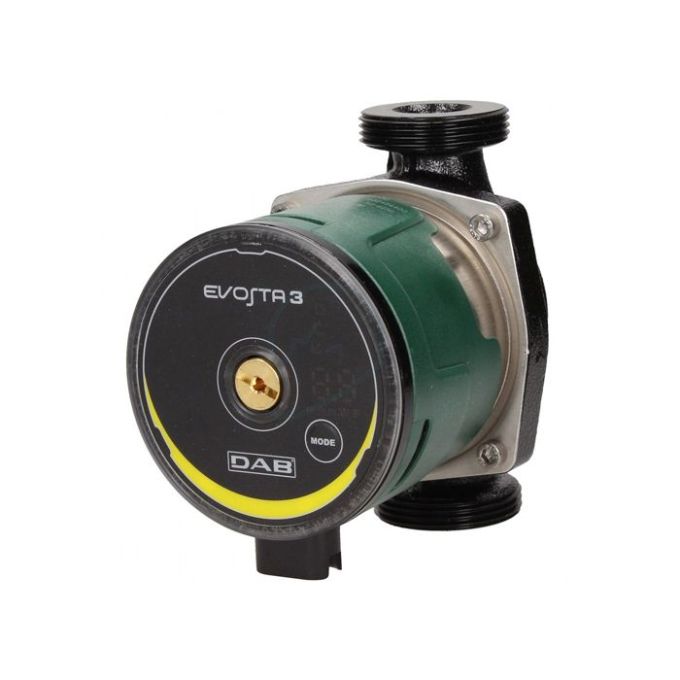

DAB Evosta3 60/180 Domestic Heating Circulator Pump - 240v - Single Phase - 60 Ltr/min
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
Wet electronic central heating circulator pump for water recirculation in heating and conditioning systems in residential building service. Efficient and reliable, equipped with a double-digit display with indication of the parameters. It is ideal for replacing old circulators due to its compact dimensions and the possible settings. The presence of a single key simplifies the configuration by the installer. The included calcium removal cartridge keeps the motor shaft in perfect condition, preventing the normal formation of limescale that it can be generated inside the circulator if some air bubbles are present during the first installation. 5 years warranty.
Construction Features Of The Pump
Pump body in cast iron with cataphoretic treatment. Technopolymer impeller. Graphite thrust bearing. Brass air plug.
Construction Features Of The Motor
Permanent magnet synchronous motor, stainless steel motor casing. Motor shaft and ceramic bushings. Rotor jacket, stator jacket and stainless steel closing flange. Motor shaft can be unblocked manually.
Construction Features Of The Electronics
Water-resistant variable frequency drive with IPX5 protection. Possibility of configuration by a single key. It is possible to choose from the nine available operating settings: three with proportional pressure, three with constant pressure, three with constant curve. The numeric display can show the current absorption in Watts, the instantaneous flow rate, the head and the set curve. Equipped with automatic degassing function and protection against overload and dry running. Power connector adaptable to connectors of other brands without redoing the electrical connections.
| Price | £255.77 |
|---|---|
| Manufacturer | Dab |
| Warranty | 1 year warranty |
| Electrical supply | 240V |
| AC Power | Single Phase |
| Cable length | 1.5m |
| Flow Rate | 60 Ltr/min |
| Max Head | 6m |
| Water type | Clean or Discoloured |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Surface Mounted |
| Pump Type | Circulator Pump |
| Next Day Delivery | No |
| Connection Size | 1 1/2 Inch BSP |
| Manufacturers Part Number | 60185506 |
