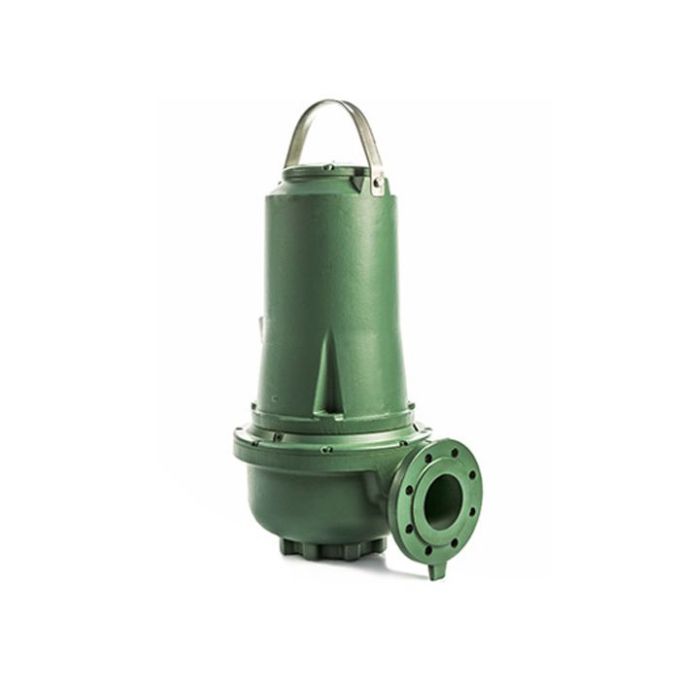

DAB FKV 80.15.4 T5 400D Submersible Wastewater Pump - 415v - Three Phase - 1200 Ltr/min
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
Submersible pumps suitable for pumping waste water and sewage from private and commercial dwellings and municipal sewer networks, in accordance with European standard EN 12050-1.
With full free passage cast iron vortex impeller with new anti-clogging profile, suitable for use with fluids containing long fibre solids, gases and slurries.
Double cartridge mechanical seal as standard in SiC/SiC silicon carbide on the hydraulics side and SiC/C silicon carbide on the motor side, independent of the rotation direction. Discharge flange available in DN65, DN80, DN100 versions according to EN 1092-1.
High efficiency three-phase asynchronous motor with squirrel cage rotor, efficiency class IE3. Suitable for use with liquids with pH between 6.5 and 12. Maximum number of starts per hour: 20. S1 motor for fully submerged continuous operation or S3 for discontinuous operation with minimum immersion levels.
Water infiltration sensor in oil chamber, capable of indicating water infiltrations through the mechanical seal (Optional). Overtemperature sensors in the motor windings with intervention threshold at 150°C.
Long-life lubricated bearings for a calculated minimum useful life of 50,000 hours. Stainless steel motor shaft, designed with high fatigue strength. Nominal power from 1.1 kW to 11 kW. ATEX version available for use in potentially explosive environments. Maximum installation depth: 20 metres (with cable of appropriate length). For use at liquid temperatures above +40°C.
| Price | £2,157.00 |
|---|---|
| Manufacturer | Dab |
| Warranty | 1 year warranty |
| Electrical supply | 400V |
| AC Power | Three Phase |
| Flow Rate | 1200 Ltr/min |
| Max Head | 9.5m |
| Water type | Dirty Water |
| Pump Type | Submersible |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Submersible |
| Next Day Delivery | No |
| Manufacturers Part Number | 60171444 |
